Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > EVB_RT2855BHGQW

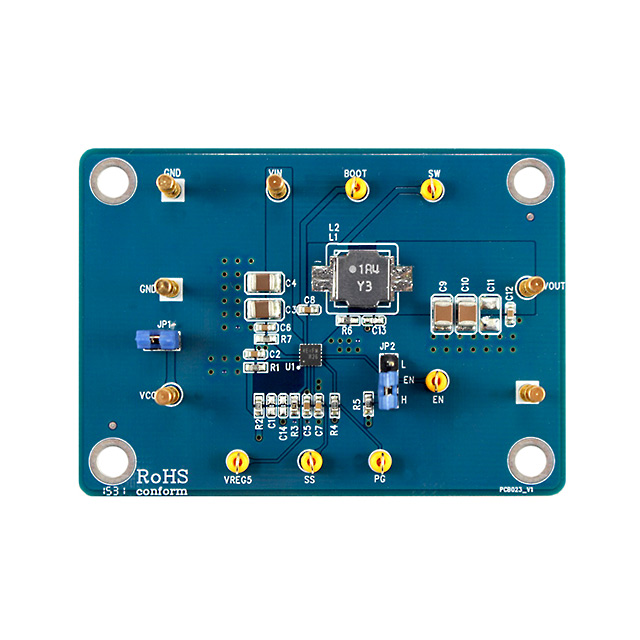

EVB_RT2855BHGQW

EVB_RT2855BHGQW

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EVB_RT2855BHGQW with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	EVB_RT2855BHGQW
Manufacturer	Richtek
Description	EVAL MODULE FOR RT2855BHGQW
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2117 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$16.233

Product parameter
Data sheet

Product parameter

Part Number	EVB_RT2855BHGQW	Manufacturer	Richtek
Description	EVAL MODULE FOR RT2855BHGQW	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2117 pcs	Data sheet	EVB_RT2855BHGQW RT2855A, RT2855B
Category	Development Boards, Kits, Programmers	Voltage - Output	1.05V
Voltage - Input	4.5 V ~ 18 V	Utilized IC / Part	RT2855B
Supplied Contents	Board(s)	Series	ACOT™
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	16 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	650kHz	Detailed Description	RT2855B ACOT™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	4A	Board Type	Fully Populated
