Home > Products > Inductors, Coils, Chokes > Fixed Inductors > PF0560.103NL

PF0560.103NL

PF0560.103NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PF0560.103NL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number PF0560.103NL
Manufacturer Pulse Electronics Corporation
Description FIXED IND 10UH 3.8A 35 MOHM SMD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 77892 pcs
Reference Price
(In US Dollars)		1 pcs90 pcs180 pcs
$0.552$0.395$0.371
540 pcs1080 pcs2520 pcs
$0.284$0.253$0.245

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.552

Product parameter

Part Number PF0560.103NL Manufacturer Pulse Electronics Corporation
Description FIXED IND 10UH 3.8A 35 MOHM SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 77892 pcs Data sheet PF0560NL Series
Category Inductors, Coils, Chokes Type Wirewound
Tolerance ±30% Supplier Device Package -
Size / Dimension 0.409" L x 0.406" W (10.40mm x 10.30mm) Shielding Shielded
Series PF0560NL Ratings -
Q @ Freq - Packaging Tray
Package / Case Nonstandard Other Names 553-3047
Operating Temperature -40°C ~ 125°C Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material - Core -
Manufacturer Standard Lead Time 13 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Inductance Frequency - Test 100kHz Inductance 10µH
Height - Seated (Max) 0.157" (4.00mm) Frequency - Self Resonant 25MHz
Features - Detailed Description 10µH Shielded Wirewound Inductor 3.8A 35 mOhm Max Nonstandard
DC Resistance (DCR) 35 mOhm Max Current Rating 3.8A
Current - Saturation 4.4A

Related products

PF0553.822NLT Image
 RFQ
PF0553.824NL Image
$0.333/pcsRFQ
PF0560.154NLT Image
$0.267/pcsRFQ
PF0560.152NLT Image
$0.265/pcsRFQ
PF0553.682NLT Image
 RFQ
PF0560.104NL Image
$0.249/pcsRFQ
PF0560.152NL Image
$0.25/pcsRFQ
PF0553.822NL Image
$0.33/pcsRFQ
PF0560.153NL Image
$0.247/pcsRFQ
PF0553.824NLT Image
 RFQ
PF0553NLKIT Image
$17.107/pcsRFQ
PF0553.683NL Image
$0.342/pcsRFQ
PF0553.823NLT Image
 RFQ
PF0560.104NLT Image
$0.257/pcsRFQ
PF0553.683NLT Image
$0.374/pcsRFQ

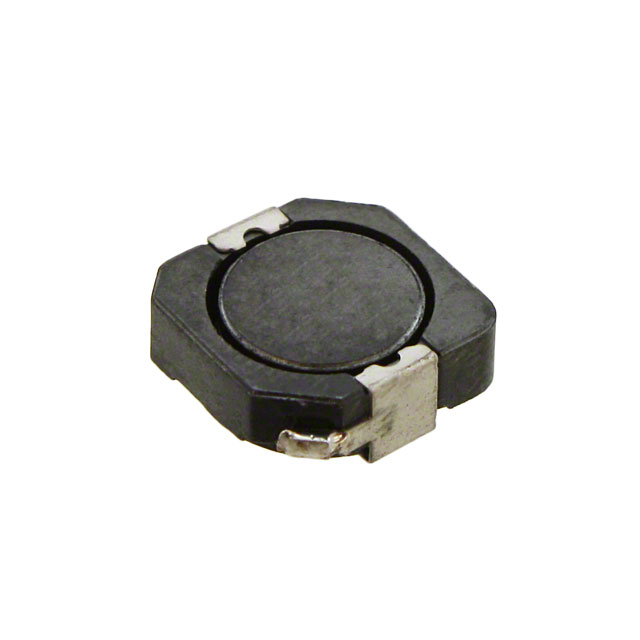

PF0560.223NL Image
