PE-68421NL

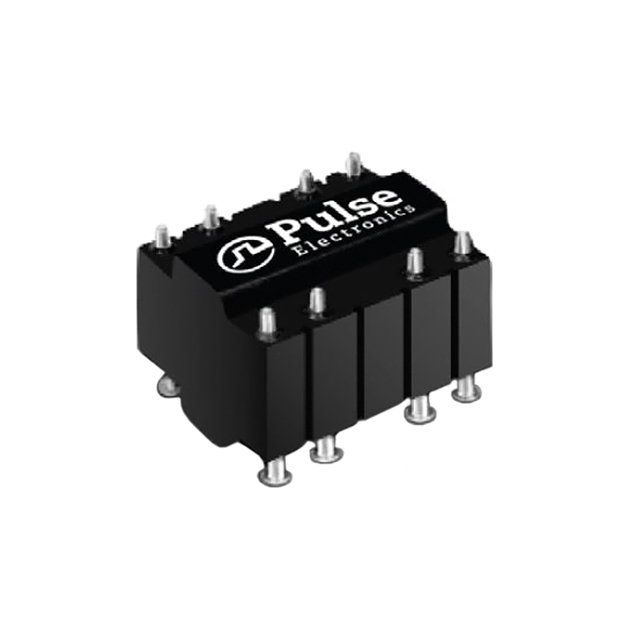

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-68421NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-68421NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-68421NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | XFRMR FLYBCK FOR 100KHZ SWITCHER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 35 pcs | 70 pcs | |
|---|---|---|---|---|---|
| $4.965 | $3.668 | $3.386 | $3.273 | ||
| 105 pcs | 280 pcs | 525 pcs | 1015 pcs | ||
| $3.183 | $3.138 | $3.104 | $3.048 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-68421NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | XFRMR FLYBCK FOR 100KHZ SWITCHER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11066 pcs | Data sheet | PE-684xxNL Series Datasheet |
| Category | Transformers | Voltage - Primary | 18 ~ 36V |
| Voltage - Isolation | 1500Vrms | Voltage - Auxiliary | - |
| Type | For DC/DC Converters | Size / Dimension | 0.970" L x 1.070" W (24.64mm x 27.18mm) |
| Series | - | Packaging | Tray |
| Other Names | 553-3889 PE-68421NL-ND |
Operating Temperature | -40°C ~ 130°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Intended Chipset | LM2585, LM2586, LM2587, LM2588 | Inductance @ Frequency | - |
| Height - Seated (Max) | 0.680" (17.27mm) | Frequency | - |
| Footprint | 0.970" L x 1.070" W (24.64mm x 27.18mm) | Chipset Manufacturer | National Semiconductor |
| Applications | Flyback Converters |
