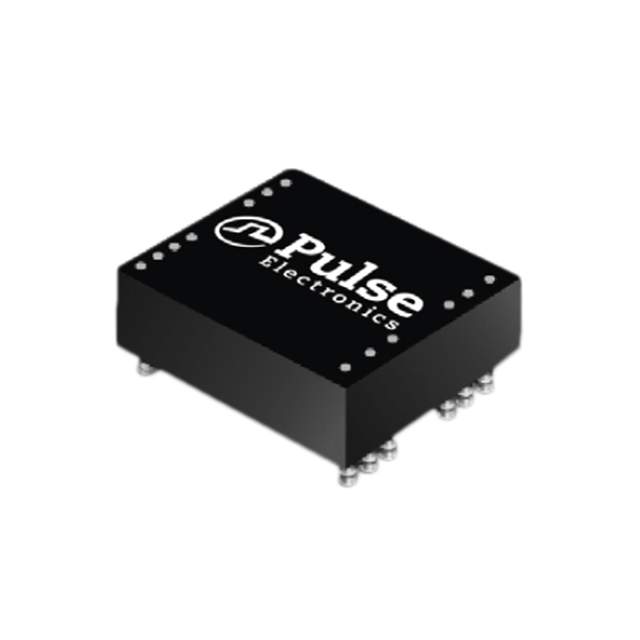

PE-68411NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-68411NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-68411NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-68411NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | XFRMR FLYBCK FOR 100KHZ SWITCHER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | 120 pcs |
|---|---|---|---|---|---|
| $4.288 | $3.168 | $2.924 | $2.827 | $2.749 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-68411NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | XFRMR FLYBCK FOR 100KHZ SWITCHER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14107 pcs | Data sheet | PE-684xxNL Series Datasheet |
| Category | Transformers | Voltage - Primary | 8 ~ 16V |
| Voltage - Isolation | 1500Vrms | Voltage - Auxiliary | - |
| Type | For DC/DC Converters | Size / Dimension | 0.920" L x 1.040" W (23.37mm x 26.42mm) |
| Series | - | Packaging | Tray |
| Other Names | 553-3322 PE-68411NL-ND |
Operating Temperature | -40°C ~ 130°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Intended Chipset | LM2585, LM2586, LM2587, LM2588 | Inductance @ Frequency | - |
| Height - Seated (Max) | 0.480" (12.19mm) | Frequency | - |
| Footprint | 0.920" L x 1.040" W (23.37mm x 26.42mm) | Chipset Manufacturer | National Semiconductor |
| Applications | Flyback Converters |
