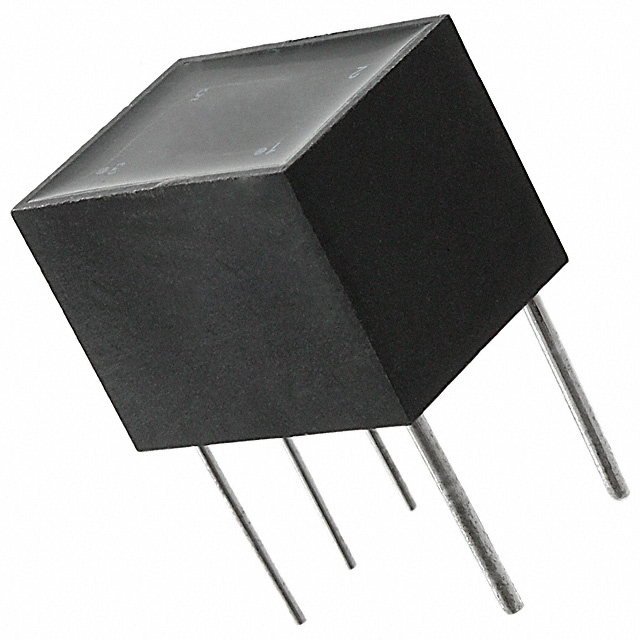

PE-63619NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-63619NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-63619NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-63619NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR 20A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 80 pcs | |
|---|---|---|---|---|---|
| $1.521 | $1.233 | $0.997 | $0.934 | ||
| 120 pcs | 280 pcs | 520 pcs | 1000 pcs | ||
| $0.892 | $0.866 | $0.84 | $0.813 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-63619NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CURR SENSE XFMR 20A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48140 pcs | Data sheet | PE-51(6,7)xx, PE-63(5,6)xx, PE-64(4,5)xx |
| Category | Transformers | Weight | - |
| Type | Invasive | Turns Ratio - Primary:Secondary | - |
| Termination Style | PC Pin | Size / Dimension | 0.900" L x 0.700" W (22.86mm x 17.78mm) |
| Series | THT | Ratings | - |
| Packaging | Tray | Other Names | 553-1886 PE-63619NL-ND PE63619NL |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 80mH | Height - Seated (Max) | 0.700" (17.78mm) |
| Frequency Range | 20kHz ~ 200kHz | Energy Time (E.T.) | - |
| Detailed Description | 20A Current Sense Transformer 20kHz ~ 200kHz 200 Ohm Primary, 4.5 Ohm Secondary 80mH Through Hole | DC Resistance (DCR) | 200 Ohm Primary, 4.5 Ohm Secondary |
| Current Ratio | 200CT:1 | Current Rating | 20A |
