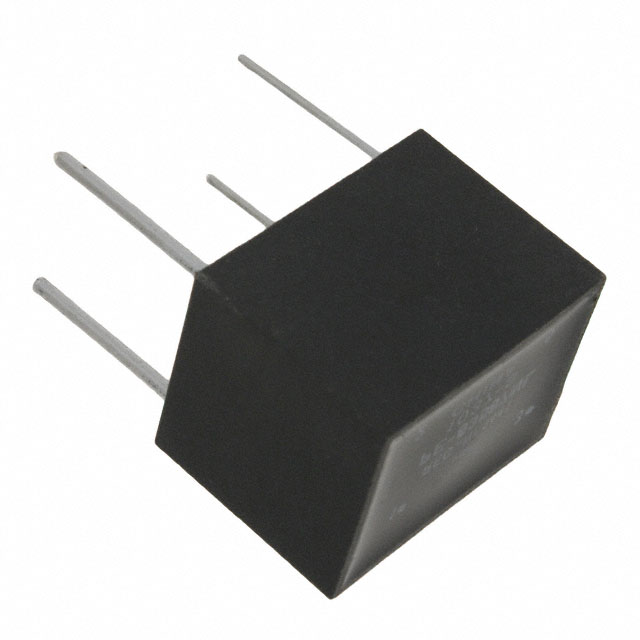

PE-63587NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-63587NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-63587NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-63587NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR 20A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 80 pcs | |
|---|---|---|---|---|---|
| $1.849 | $1.498 | $1.211 | $1.134 | ||
| 120 pcs | 280 pcs | 520 pcs | 1000 pcs | ||
| $1.084 | $1.052 | $1.02 | $0.988 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-63587NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CURR SENSE XFMR 20A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31256 pcs | Data sheet | PE-51(6,7)xx, PE-63(5,6)xx, PE-64(4,5)xx |
| Category | Transformers | Weight | - |
| Type | Invasive | Turns Ratio - Primary:Secondary | - |
| Termination Style | PC Pin | Size / Dimension | 0.900" L x 0.700" W (22.86mm x 17.78mm) |
| Series | THT | Ratings | - |
| Packaging | Tray | Other Names | 553-1548 PE-63587NL-ND PE63587NL |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 20mH | Height - Seated (Max) | 0.700" (17.78mm) |
| Frequency Range | 20kHz ~ 200kHz | Energy Time (E.T.) | - |
| Detailed Description | 20A Current Sense Transformer 20kHz ~ 200kHz 100 Ohm Primary, 1.4 Ohm Secondary 20mH Through Hole | DC Resistance (DCR) | 100 Ohm Primary, 1.4 Ohm Secondary |
| Current Ratio | 100:1 | Current Rating | 20A |
