PE-53122NL

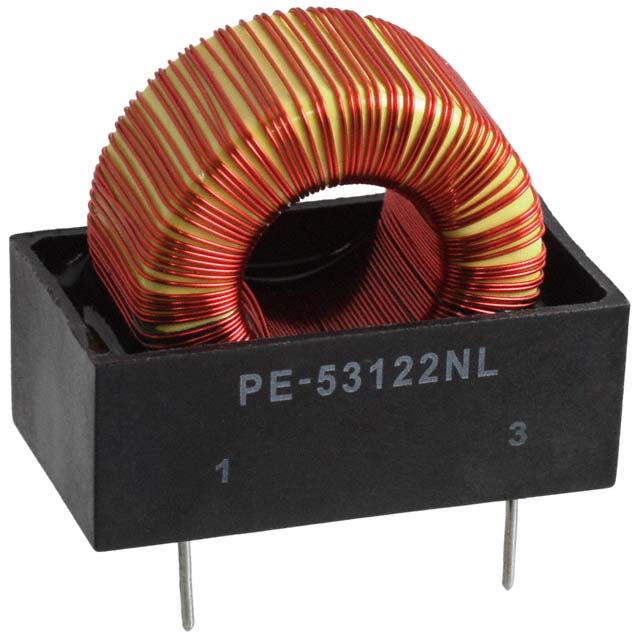

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-53122NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-53122NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-53122NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 2.2MH 420MA 1.8 OHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.018 | $1.682 | $1.211 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $1.076 | $1.009 | $0.975 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-53122NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 2.2MH 420MA 1.8 OHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39646 pcs | Data sheet | PE-526xx, PE-531xx, PE-92114K, PE92108K |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 1.440" L x 0.800" W (36.57mm x 20.32mm) | Shielding | Unshielded |
| Series | - | Ratings | - |
| Q @ Freq | - | Packaging | Tube |
| Package / Case | Radial | Other Names | 553-1811-5 PE-53122NL-ND PE53122NL |
| Operating Temperature | -40°C ~ 130°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 2.2mH | Height - Seated (Max) | 1.440" (36.57mm) |
| Frequency - Self Resonant | - | Features | - |
| Detailed Description | 2.2mH Unshielded Toroidal Inductor 420mA 1.8 Ohm Max Radial | DC Resistance (DCR) | 1.8 Ohm Max |
| Current Rating | 420mA | Current - Saturation | - |
