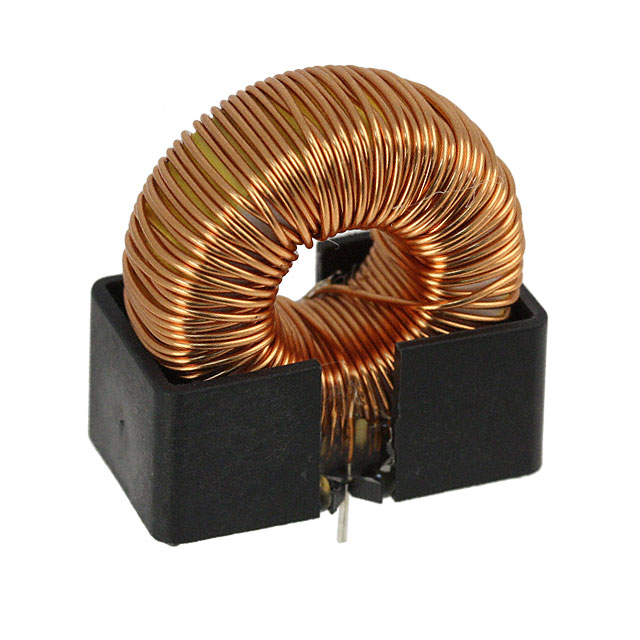

PE-53120NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-53120NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-53120NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-53120NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 1MH 950MA 240 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 35 pcs | 105 pcs | ||
|---|---|---|---|---|---|
| $1.735 | $1.446 | $1.041 | |||
| 525 pcs | 1015 pcs | 2520 pcs | |||
| $0.925 | $0.867 | $0.838 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-53120NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 1MH 950MA 240 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39466 pcs | Data sheet | PE-526xx, PE-531xx, PE-92114K, PE92108K |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 1.300" L x 0.700" W (33.02mm x 17.78mm) | Shielding | Unshielded |
| Series | - | Ratings | - |
| Q @ Freq | - | Packaging | Tube |
| Package / Case | Radial | Other Names | 553-1588-5 PE-53120NL-ND PE53120NL |
| Operating Temperature | -40°C ~ 130°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 1mH | Height - Seated (Max) | 1.400" (35.56mm) |
| Frequency - Self Resonant | - | Features | - |
| Detailed Description | 1mH Unshielded Toroidal Inductor 950mA 240 mOhm Max Radial | DC Resistance (DCR) | 240 mOhm Max |
| Current Rating | 950mA | Current - Saturation | - |
