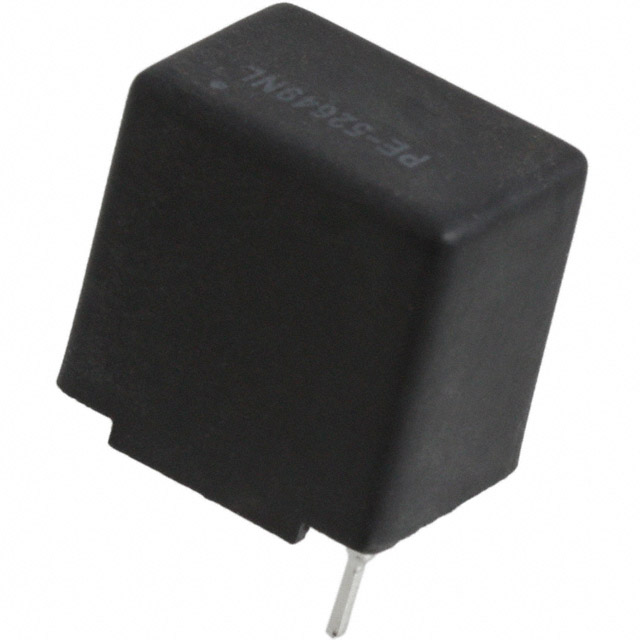

PE-52649NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-52649NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-52649NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-52649NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 680UH 850MA 1.5 OHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 40 pcs | 120 pcs | ||
|---|---|---|---|---|---|
| $1.223 | $1.019 | $0.734 | |||
| 520 pcs | 1000 pcs | 2520 pcs | |||
| $0.652 | $0.612 | $0.591 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-52649NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 680UH 850MA 1.5 OHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 51796 pcs | Data sheet | PE-526xxNL |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.710" L x 0.510" W (18.03mm x 12.95mm) | Shielding | Unshielded |
| Series | - | Ratings | - |
| Q @ Freq | - | Packaging | Tube |
| Package / Case | Radial | Other Names | 553-1807-5 PE-52649NL-ND PE52649NL |
| Operating Temperature | -40°C ~ 130°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 20kHz | Inductance | 680µH |
| Height - Seated (Max) | 0.710" (18.03mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 680µH Unshielded Toroidal Inductor 850mA 1.5 Ohm Max Radial |
| DC Resistance (DCR) | 1.5 Ohm Max | Current Rating | 850mA |
| Current - Saturation | - |
