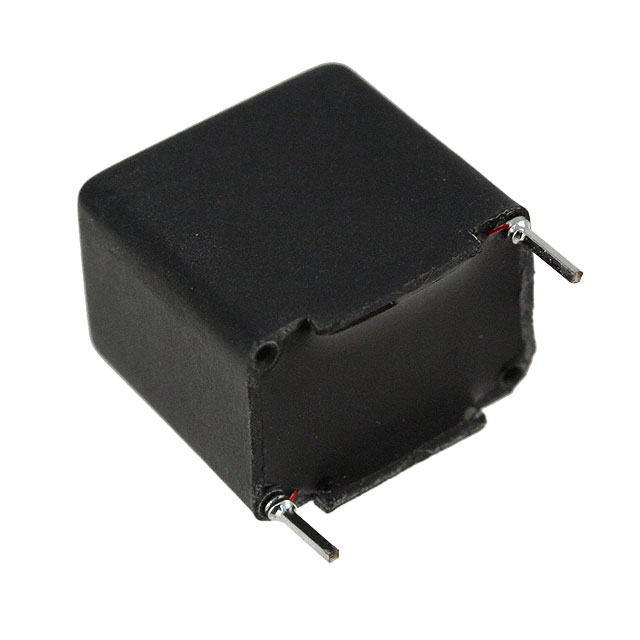

PE-52647NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-52647NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-52647NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-52647NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 330UH 1A 780 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 40 pcs | 120 pcs | ||
|---|---|---|---|---|---|
| $1.076 | $0.895 | $0.645 | |||
| 520 pcs | 1000 pcs | 2520 pcs | |||
| $0.573 | $0.537 | $0.519 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-52647NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 330UH 1A 780 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65212 pcs | Data sheet | PE-526xxNL |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.710" L x 0.510" W (18.03mm x 12.95mm) | Shielding | Unshielded |
| Series | - | Ratings | - |
| Q @ Freq | - | Packaging | Tube |
| Package / Case | Radial | Other Names | 553-1558-5 PE-52647NL-ND PE52647NL |
| Operating Temperature | -40°C ~ 130°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 20kHz | Inductance | 330µH |
| Height - Seated (Max) | 0.710" (18.03mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 330µH Unshielded Toroidal Inductor 1A 780 mOhm Max Radial |
| DC Resistance (DCR) | 780 mOhm Max | Current Rating | 1A |
| Current - Saturation | - |
