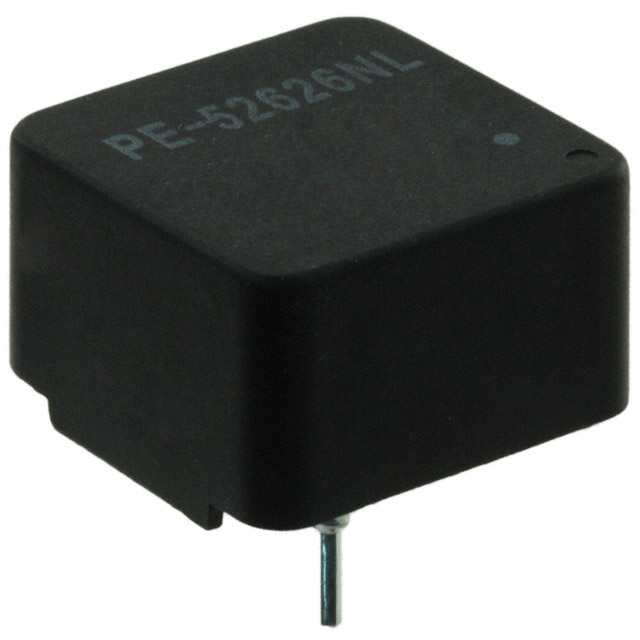

PE-52626NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-52626NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-52626NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-52626NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 220UH 1.5A 420 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.19 | $0.992 | $0.714 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.635 | $0.595 | $0.575 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-52626NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 220UH 1.5A 420 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58915 pcs | Data sheet | PE-526xxNL |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.710" L x 0.710" W (18.03mm x 18.03mm) | Shielding | Unshielded |
| Series | - | Ratings | - |
| Q @ Freq | - | Packaging | Tube |
| Package / Case | Radial | Other Names | 553-1568-5 PE-52626NL-ND PE52626NL |
| Operating Temperature | -40°C ~ 130°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 20kHz | Inductance | 220µH |
| Height - Seated (Max) | 0.460" (11.68mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 220µH Unshielded Toroidal Inductor 1.5A 420 mOhm Max Radial |
| DC Resistance (DCR) | 420 mOhm Max | Current Rating | 1.5A |
| Current - Saturation | - |
