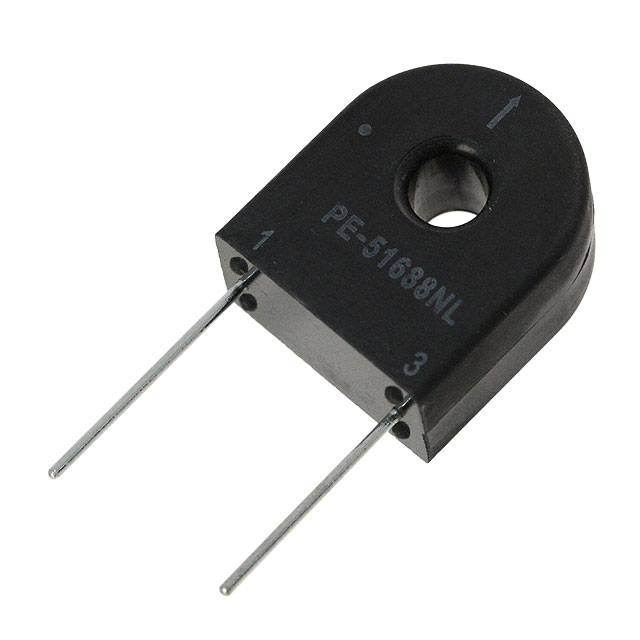

PE-51688NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-51688NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-51688NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-51688NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR 20A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 60 pcs | 120 pcs | ||
|---|---|---|---|---|---|
| $1.306 | $0.914 | $0.783 | |||
| 540 pcs | 1020 pcs | 2520 pcs | |||
| $0.696 | $0.653 | $0.631 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-51688NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CURR SENSE XFMR 20A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53714 pcs | Data sheet | PE-51(6,7)xx, PE-63(5,6)xx, PE-64(4,5)xx |
| Category | Transformers | Type | Invasive |
| Turns Ratio - Primary:Secondary | - | Termination Style | PC Pin |
| Size / Dimension | 0.670" L x 0.390" W (17.01mm x 9.90mm) | Series | THT |
| Ratings | - | Packaging | Tray |
| Other Names | 553-1546 PE-51688NL-ND PE51688NL |
Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 80mH |
| Height - Seated (Max) | 0.800" (20.32mm) | Frequency Range | 20kHz ~ 200kHz |
| Energy Time (E.T.) | - | Detailed Description | 20A Current Sense Transformer 20kHz ~ 200kHz 200 Ohm Primary, 4.5 Ohm Secondary 80mH Through Hole |
| DC Resistance (DCR) | 200 Ohm Primary, 4.5 Ohm Secondary | Current Ratio | 200:1 |
| Current Rating | 20A |
