PB2020.681NL

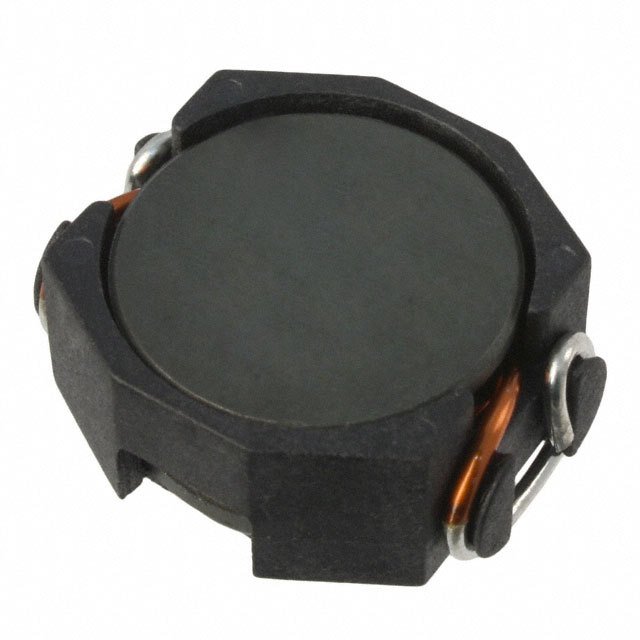

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PB2020.681NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PB2020.681NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PB2020.681NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 680NH 30A 1.8 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.113 | $1.028 | $0.72 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.582 | $0.531 | $0.514 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PB2020.681NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 680NH 30A 1.8 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68154 pcs | Data sheet | PB2020NL Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.940" L x 0.820" W (23.87mm x 20.83mm) | Shielding | Unshielded |
| Series | PB2020NL | Ratings | - |
| Q @ Freq | - | Packaging | Tube |
| Package / Case | Nonstandard | Other Names | 553-2737 553-2737-5 553-2737-ND PB2020.681NL-ND |
| Operating Temperature | -40°C ~ 130°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 680nH | Height - Seated (Max) | 0.400" (10.16mm) |
| Frequency - Self Resonant | - | Features | - |
| Detailed Description | 680nH Unshielded Wirewound Inductor 30A 1.8 mOhm Max Nonstandard | DC Resistance (DCR) | 1.8 mOhm Max |
| Current Rating | 30A | Current - Saturation | 70A |
