PB223-156.25M

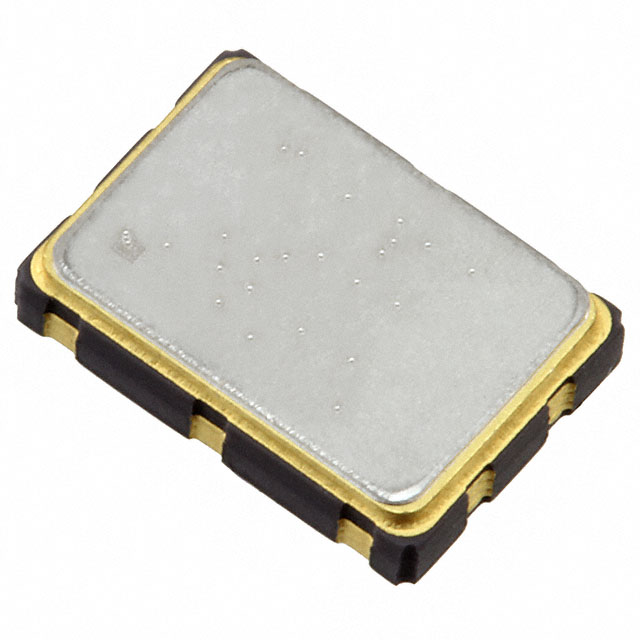

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PB223-156.25M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PB223-156.25M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PB223-156.25M |
|---|---|
| Manufacturer | Connor-Winfield |
| Description | OSC XO 156.25MHZ LVPECL SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | 500 pcs | 750 pcs | ||
|---|---|---|---|---|---|
| $3.198 | $3.083 | $2.855 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PB223-156.25M | Manufacturer | Connor-Winfield |
|---|---|---|---|
| Description | OSC XO 156.25MHZ LVPECL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12748 pcs | Data sheet | PBzzz Series |
| Category | Crystals, Oscillators, Resonators | Voltage - Supply | 3.3V |
| Type | XO (Standard) | Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Series | PB | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | 6-SMD, No Lead |
| Output | LVPECL | Other Names | CW847TR |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.069" (1.75mm) |
| Function | Enable/Disable | Frequency Stability | ±50ppm |
| Frequency | 156.25MHz | Detailed Description | 156.25MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead |
| Current - Supply (Max) | 50mA | Current - Supply (Disable) (Max) | 12mA (Typ) |
| Base Resonator | Crystal |
