PA4342.103NLT

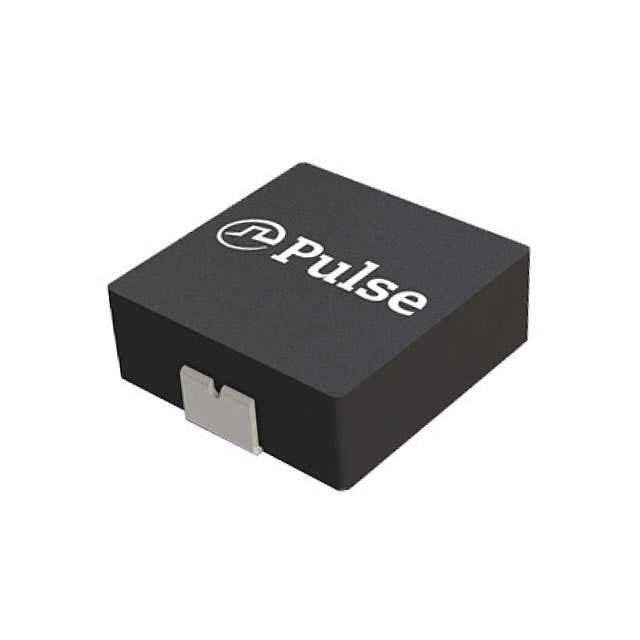

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA4342.103NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA4342.103NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA4342.103NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 10UH 7.5A 30 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | 12500 pcs |
|---|---|---|---|---|---|
| $0.224 | $0.199 | $0.193 | $0.187 | $0.18 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PA4342.103NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 10UH 7.5A 30 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 104866 pcs | Data sheet | PA4342NLT Series Datasheet |
| Category | Inductors, Coils, Chokes | Type | Molded |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.453" L x 0.406" W (11.50mm x 10.30mm) | Shielding | Shielded |
| Series | PA4342.XXXNLT | Ratings | AEC-Q200 |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 553-2998-2 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 10µH |
| Height - Seated (Max) | 0.157" (4.00mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 10µH Shielded Molded Inductor 7.5A 30 mOhm Max Nonstandard |
| DC Resistance (DCR) | 30 mOhm Max | Current Rating | 7.5A |
| Current - Saturation | 12A |
