Home > Products > Transformers > Current Sense Transformers > PA1005.100QNLT

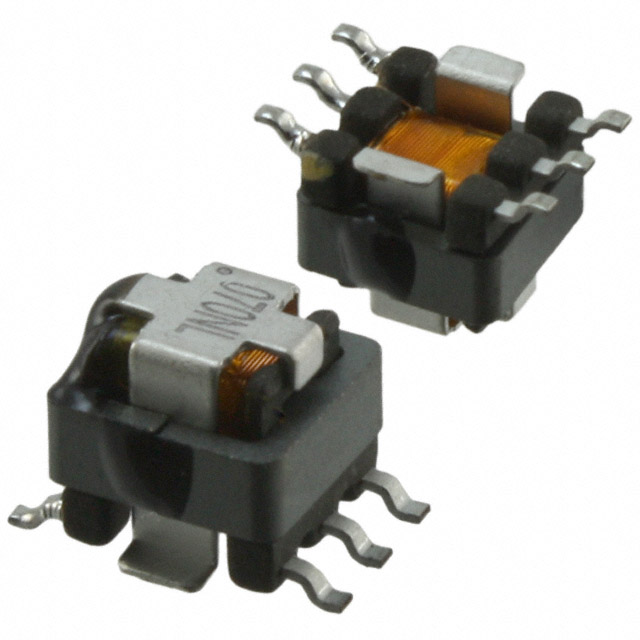

PA1005.100QNLT

PA1005.100QNLT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA1005.100QNLT with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number PA1005.100QNLT
Manufacturer Pulse Electronics Corporation
Description XFMR CURR SENSE 1:100 AECQ SMD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 59436 pcs
Reference Price
(In US Dollars)		1800 pcs
$0.362

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.362

Product parameter

Part Number PA1005.100QNLT Manufacturer Pulse Electronics Corporation
Description XFMR CURR SENSE 1:100 AECQ SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 59436 pcs Data sheet PA1005.zzzQNL Series Datasheet
Category Transformers Weight -
Type Invasive Turns Ratio - Primary:Secondary 1:100
Termination Style Gull Wing Size / Dimension 0.284" L x 0.330" W (7.21mm x 8.38mm)
Series PA1005QNL Ratings AEC-Q200
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 11 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Inductance 2mH Height - Seated (Max) 0.217" (5.50mm)
Frequency Range 20kHz ~ 1MHz Energy Time (E.T.) -
Detailed Description 20A 1:100 Current Sense Transformer 20kHz ~ 1MHz 0.75 mOhm Primary, 5.5 Ohm Secondary Max 2mH Surface Mount DC Resistance (DCR) 0.75 mOhm Primary, 5.5 Ohm Secondary Max
Current Ratio - Current Rating 20A
