Home > Products > Transformers > Current Sense Transformers > PA1005.070NLT

PA1005.070NLT

PA1005.070NLT

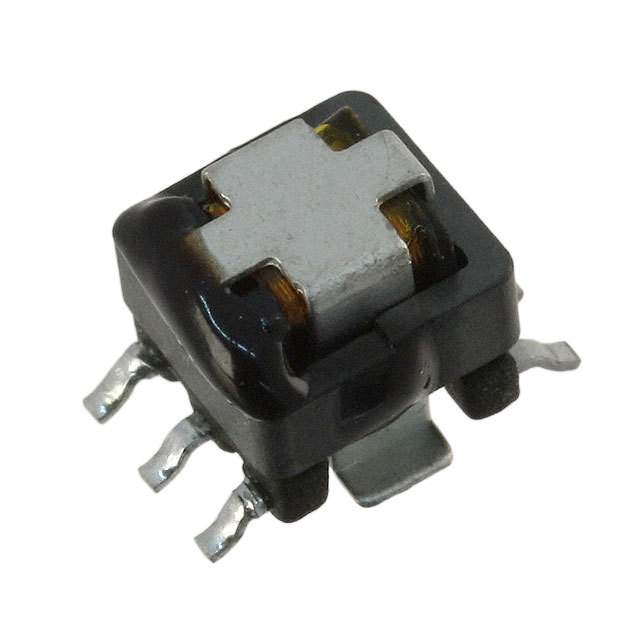

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA1005.070NLT with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number PA1005.070NLT
Manufacturer Pulse Electronics Corporation
Description CURR SENSE XFMR 1:70 20A SMD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 71316 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs25 pcs
$0.824$0.658$0.535
50 pcs100 pcs250 pcs
$0.521$0.507$0.494

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.824

Product parameter

Part Number PA1005.070NLT Manufacturer Pulse Electronics Corporation
Description CURR SENSE XFMR 1:70 20A SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 71316 pcs Data sheet PA1005.zzzNL Series Datasheet
Category Transformers Weight 0.014 oz (0.4g)
Type Invasive Turns Ratio - Primary:Secondary 1:70
Termination Style Gull Wing Size / Dimension 0.284" L x 0.330" W (7.21mm x 8.38mm)
Series PA1005.XXXNL Ratings -
Packaging Original-Reel® Other Names 553-1528-6
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 11 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Inductance 980µH Height - Seated (Max) 0.217" (5.50mm)
Frequency Range 50kHz ~ 1MHz Energy Time (E.T.) -
Detailed Description 20A 1:70 Current Sense Transformer 50kHz ~ 1MHz 0.75 mOhm Primary, 4.75 Ohm Secondary 980µH Surface Mount DC Resistance (DCR) 0.75 mOhm Primary, 4.75 Ohm Secondary
Current Ratio - Current Rating 20A
