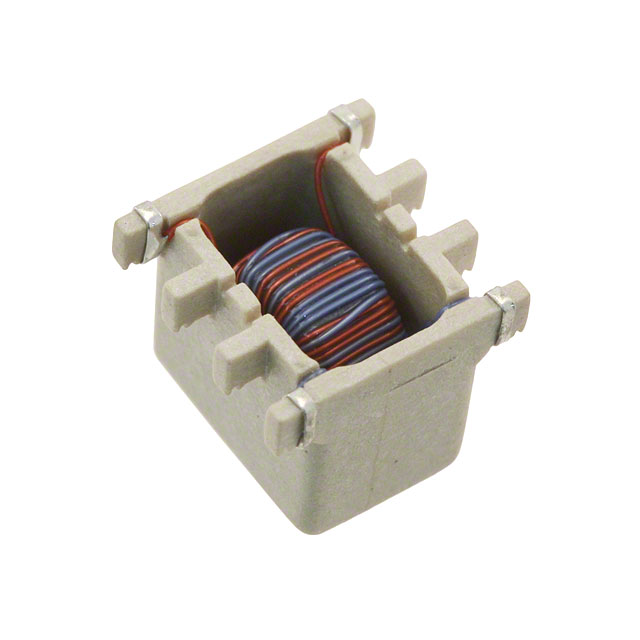

PA0184NLT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA0184NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA0184NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA0184NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | PULSE XFMR 1:1 1.2MH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.227 | $0.995 | $0.805 | $0.754 | $0.72 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PA0184NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | PULSE XFMR 1:1 1.2MH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52116 pcs | Data sheet | SMT Gate Drive Transformers |
| Category | Transformers | Turns Ratio - Primary:Secondary | 1:1 |
| Transformer Type | - | Size / Dimension | 0.355" L x 0.340" W (9.02mm x 8.64mm) |
| Series | - | Packaging | Original-Reel® |
| Other Names | 553-1524-6 | Operating Temperature | -40°C ~ 130°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 1.2mH | Height - Seated (Max) | 0.300" (7.62mm) |
| Energy Time (E.T.) | 27.2V µS |
