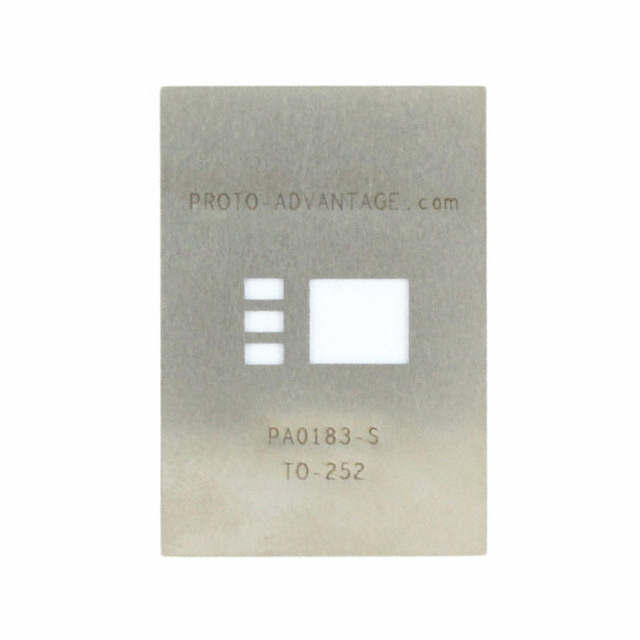

PA0183-S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA0183-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA0183-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA0183-S |
|---|---|
| Manufacturer | Chip Quik, Inc. |
| Description | TO-252 STENCIL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $4.201 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA0183-S | Manufacturer | Chip Quik, Inc. |
|---|---|---|---|
| Description | TO-252 STENCIL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8718 pcs | Data sheet | Stencil Selection GuildePA0183-S DatasheetCircuit Assembly Instr |
| Category | Soldering, Desoldering, Rework Products | Type | TO/DPAK |
| Thickness | 0.0040" (0.102mm) | Thermal Center Pad | 0.276" L x 0.236" W (7.00mm x 6.00mm) |
| Series | Proto-Advantage | Pitch | 0.090" (2.29mm) |
| Outer Dimension | 0.900" L x 1.300" W (22.86mm x 33.02mm) | Number of Positions | 3 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material | Stainless Steel |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inner Dimension | 0.259" L x 0.287" W (6.58mm x 7.30mm) |
