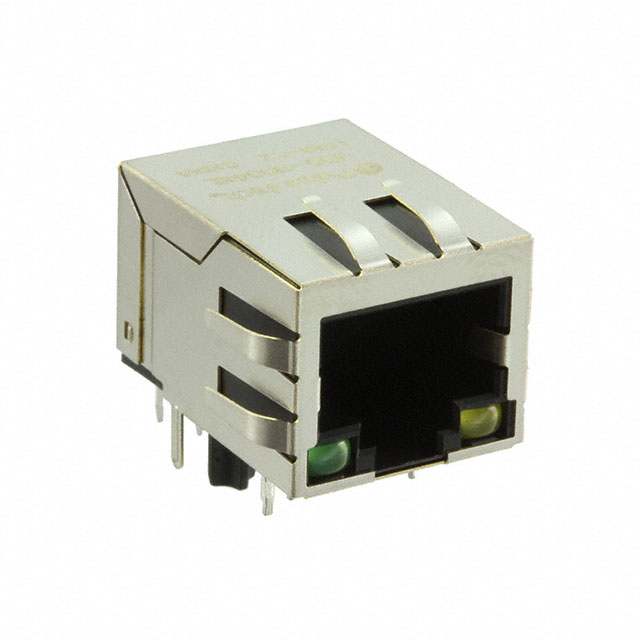

JD0-0004NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JD0-0004NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JD0-0004NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JD0-0004NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN MAGJACK 1PORT 100 BASE-TX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.079 | $1.994 | $1.828 | $1.745 | $1.662 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.454 | $1.412 | $1.205 | $1.122 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JD0-0004NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN MAGJACK 1PORT 100 BASE-TX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29618 pcs | Data sheet | JD0-0004NL Datasheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Down | Shielding | Shielded, EMI Finger |
| Shield Material | Brass | Series | PULSEJACK™ JD0 |
| Packaging | Tray | Other Names | 553-2605 |
| Orientation | 90° Angle (Right) | Operating Temperature | 0°C ~ 70°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 5 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Green - Yellow |
| Housing Material | Thermoplastic | Height Above Board | 0.531" (13.49mm) |
| Features | Board Guide | Detailed Description | 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX |
| Contact Material | Copper Alloy | Contact Finish Thickness | 6.00µin (0.152µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100 Base-TX |
