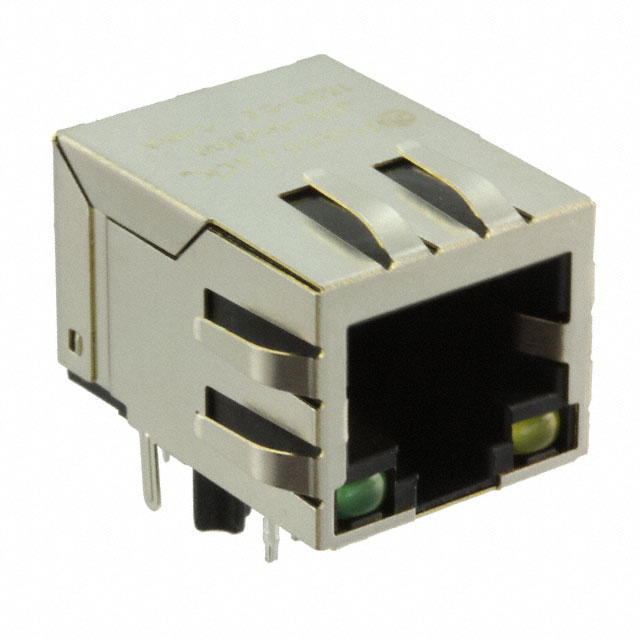

JD0-0003NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JD0-0003NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JD0-0003NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JD0-0003NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN MAGJACK 1PORT 100 BASE-TX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.614 | $1.548 | $1.419 | $1.354 | $1.29 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.129 | $1.096 | $0.935 | $0.871 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JD0-0003NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN MAGJACK 1PORT 100 BASE-TX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39068 pcs | Data sheet | JD0-0003NL Datasheet |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Copper Alloy |
| Usage | Shielded, EMI Finger | Termination | Solder |
| Tab Direction | Green - Yellow | Shield Coverage | Brass |
| Series | PULSEJACK™ JD0 | RoHS Status | Tray |
| Ripple Current - Low Frequency | 10/100 Base-TX, AutoMDIX | Pair Number | 8 |
| Other Names | 553-2604 | Operating Temperature | 0°C ~ 70°C |
| Number of Rows | 1 | Number of Cores per Jack | Down |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Manufacturer Part Number | JD0-0003NL |
| Height Above Board | 0.531" (13.50mm) | Features | Board Guide |
| Expanded Description | 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX | Description | CONN MAGJACK 1PORT 100 BASE-TX |
| Contact Material | 90° Angle (Right) | Contact Finish Thickness | Gold |
| Connector Type | RJ45 | Card Type | 1 |
| Cable Opening | Thermoplastic | Cable Diameter | 6µin (0.152µm) |
