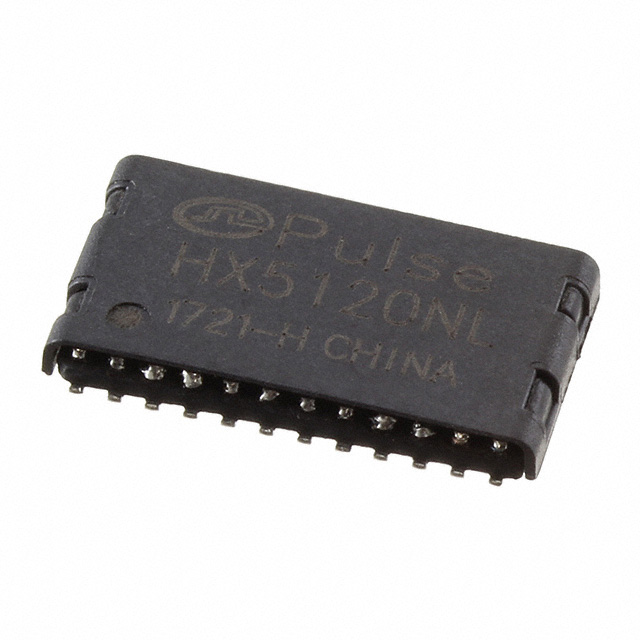

HX5120NLT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HX5120NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HX5120NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HX5120NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | PULSE XFMR 1 CT:1CT TX/RX 350UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.949 | $5.294 | $4.88 | $4.715 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.632 | $4.467 | $4.301 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HX5120NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | PULSE XFMR 1 CT:1CT TX/RX 350UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8106 pcs | Data sheet | HX5120NL DrawingLAN Discrete Transformer Modules |
| Category | Transformers | Weight | - |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver | Transformer Type | LAN 10/100/1000 Base-T |
| Size / Dimension | 0.650" L x 0.360" W (16.51mm x 9.14mm) | Series | - |
| Packaging | Original-Reel® | Other Names | 1840-1073-6 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 350µH |
| Height - Seated (Max) | 0.082" (2.08mm) | Energy Time (E.T.) | - |
