HX5004ENL

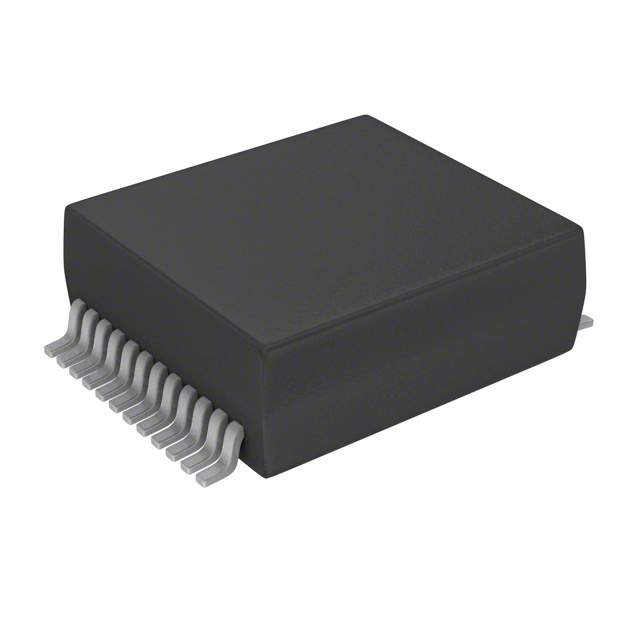

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HX5004ENL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HX5004ENL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HX5004ENL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | PULSE XFMR 1 CT:1CT TX/RX 350UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.87 | $2.965 | $2.512 | $2.471 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.347 | $2.323 | $2.29 | $2.265 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HX5004ENL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | PULSE XFMR 1 CT:1CT TX/RX 350UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16583 pcs | Data sheet | HX5004ENL Drawing |
| Category | Transformers | Weight | - |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver | Transformer Type | LAN 10/100/1000 Base-T |
| Size / Dimension | 0.689" L x 0.480" W (17.50mm x 12.20mm) | Series | - |
| Packaging | Tube | Other Names | 553-3204-5 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 350µH |
| Height - Seated (Max) | 0.225" (5.72mm) | Energy Time (E.T.) | - |
