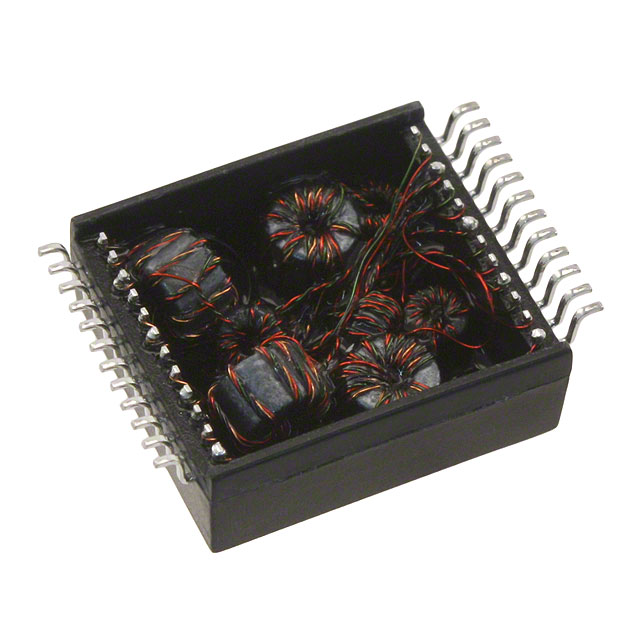

HX5009NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HX5009NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HX5009NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HX5009NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | MODULE XFORMR GIGABIT SINGLE LAN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HX5009NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | MODULE XFORMR GIGABIT SINGLE LAN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5404 pcs | Data sheet | 1000Base-T Magnetics Modules |
| Category | Transformers | Weight | 0.06 oz (1.71g) |
| Turns Ratio - Primary:Secondary | 1CT:1CT | Transformer Type | Isolation and Data Interface (Encapsulated) |
| Size / Dimension | 0.537" L x 0.600" W (13.64mm x 15.24mm) | Series | - |
| Packaging | Tube | Other Names | 553-1462-5 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | - | Height - Seated (Max) | 0.235" (5.97mm) |
| Energy Time (E.T.) | - |
