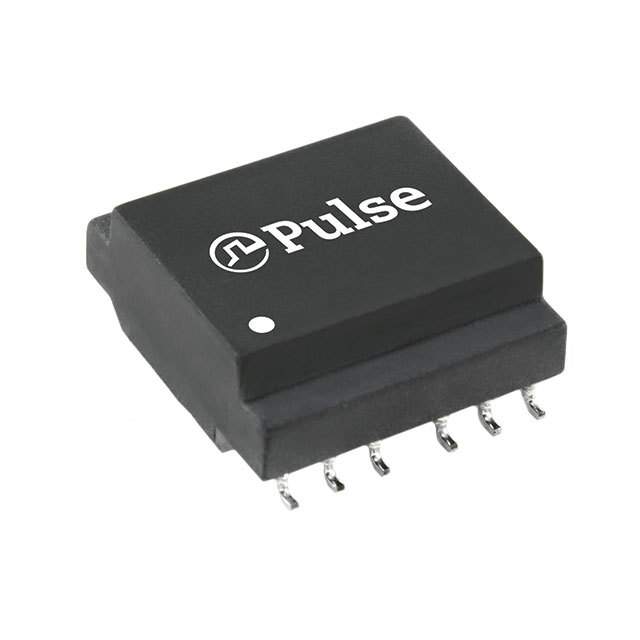

HX1224CNL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HX1224CNL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HX1224CNL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HX1224CNL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | PULSE XFMR 1CT:1CT TX 1CT:1CT RX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 35 pcs | 70 pcs | |
|---|---|---|---|---|---|
| $2.428 | $1.845 | $1.797 | $1.651 | ||
| 105 pcs | 280 pcs | 525 pcs | 1015 pcs | ||
| $1.554 | $1.505 | $1.457 | $1.408 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HX1224CNL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | PULSE XFMR 1CT:1CT TX 1CT:1CT RX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23578 pcs | Data sheet | HX1224CNL Drawing Spec |
| Category | Transformers | Weight | - |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver | Transformer Type | LAN 10/100 Base-T |
| Size / Dimension | 0.537" L x 0.570" W (13.64mm x 14.48mm) | Series | - |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 350µH |
| Height - Seated (Max) | 0.245" (6.22mm) | Energy Time (E.T.) | - |
