HX1217NL

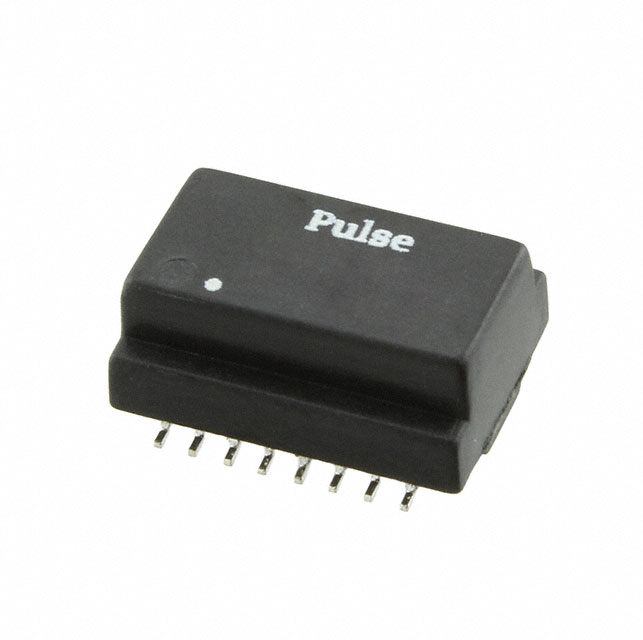

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HX1217NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HX1217NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HX1217NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | PULSE XFMR 1:1 TX 1:1 RX 350UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 80 pcs | |
|---|---|---|---|---|---|
| $1.973 | $1.597 | $1.291 | $1.21 | ||
| 120 pcs | 280 pcs | 520 pcs | 1000 pcs | ||
| $1.155 | $1.121 | $1.087 | $1.053 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HX1217NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | PULSE XFMR 1:1 TX 1:1 RX 350UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32834 pcs | Data sheet | Product Catalog, Short Form |
| Category | Transformers | Weight | - |
| Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver | Transformer Type | LAN 10/100 Base-T |
| Size / Dimension | 0.500" L x 0.358" W (12.70mm x 9.09mm) | Series | - |
| Packaging | Tube | Other Names | 553-3203-5 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 350µH |
| Height - Seated (Max) | 0.236" (5.99mm) | Energy Time (E.T.) | - |
