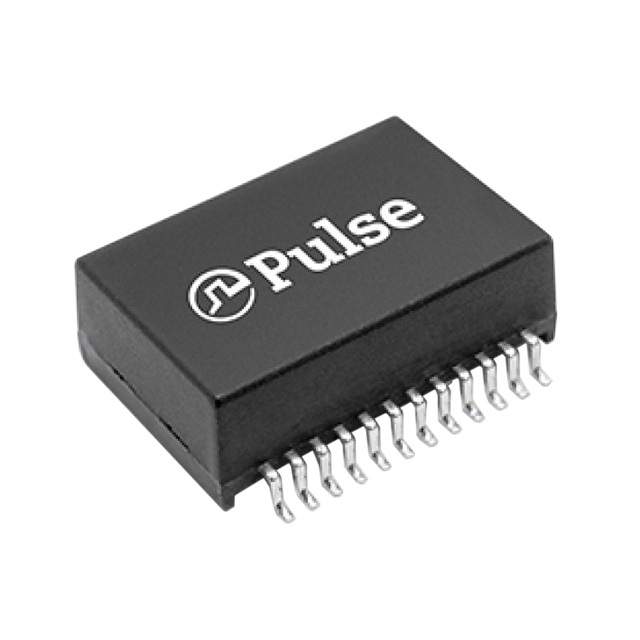

HDX8006NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDX8006NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDX8006NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDX8006NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | MDL,SIN, HDBASET, 140W, SMT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.864 | $2.959 | $2.507 | $2.466 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.342 | $2.318 | $2.285 | $2.26 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDX8006NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | MDL,SIN, HDBASET, 140W, SMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14055 pcs | Data sheet | HDX8006NL Datasheet |
| Category | Transformers | Weight | - |
| Turns Ratio - Primary:Secondary | 1:1 | Transformer Type | HDBase-T |
| Size / Dimension | 0.715" L x 0.480" W (18.16mm x 12.20mm) | Series | - |
| Other Names | 1840-1292-5 | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 120µH | Height - Seated (Max) | 0.260" (6.60mm) |
| Energy Time (E.T.) | - |
