H5062NL

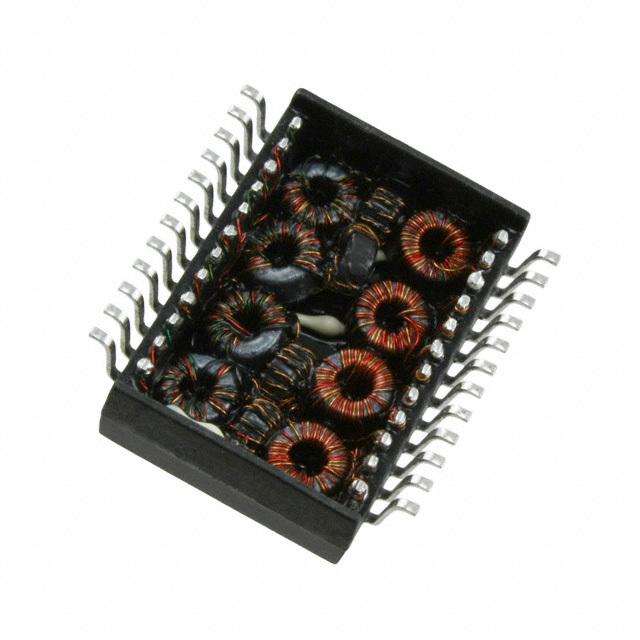

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H5062NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H5062NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H5062NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | XFRMR MODULE GIGABIT 1PORT 1:1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.459 | $1.868 | $1.819 | $1.671 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.573 | $1.524 | $1.474 | $1.425 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H5062NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | XFRMR MODULE GIGABIT 1PORT 1:1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26258 pcs | Data sheet | Star Magnetics™ H5062,H6062,H6080LAN Product Guide |
| Category | Transformers | Weight | 0.1 oz (2.85g) |
| Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver | Transformer Type | Isolation and Data Interface (Encapsulated) |
| Size / Dimension | 0.690" L x 0.480" W (17.53mm x 12.20mm) | Series | Star Magnetics™ |
| Packaging | Tube | Other Names | 553-1602-5 H5062NL-ND |
| Operating Temperature | 0°C ~ 70°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | - |
| Height - Seated (Max) | 0.227" (5.76mm) | Energy Time (E.T.) | - |
