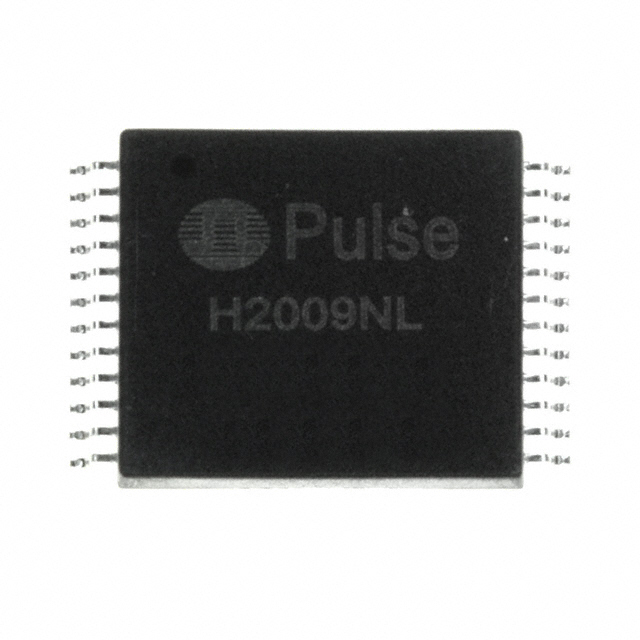

H2009NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H2009NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H2009NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H2009NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | MODULE XFRMR VOIP DL LAN 24-SOIC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.997 | $2.33 | $2.267 | $1.952 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.864 | $1.826 | $1.795 | $1.763 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H2009NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | MODULE XFRMR VOIP DL LAN 24-SOIC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21857 pcs | Data sheet | PoE Magnetics,10/100BASE-TX VoIP ModuleH2009NL Drawing |
| Category | Transformers | Weight | 0.06 oz (1.71g) |
| Turns Ratio - Primary:Secondary | 1CT:1CT | Transformer Type | Isolation and Data Interface (Encapsulated) |
| Size / Dimension | 0.518" L x 0.595" W (13.16mm x 15.11mm) | Series | - |
| Packaging | Tube | Other Names | 553-1332 |
| Operating Temperature | 0°C ~ 70°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | - |
| Height - Seated (Max) | 0.251" (6.37mm) | Energy Time (E.T.) | - |
