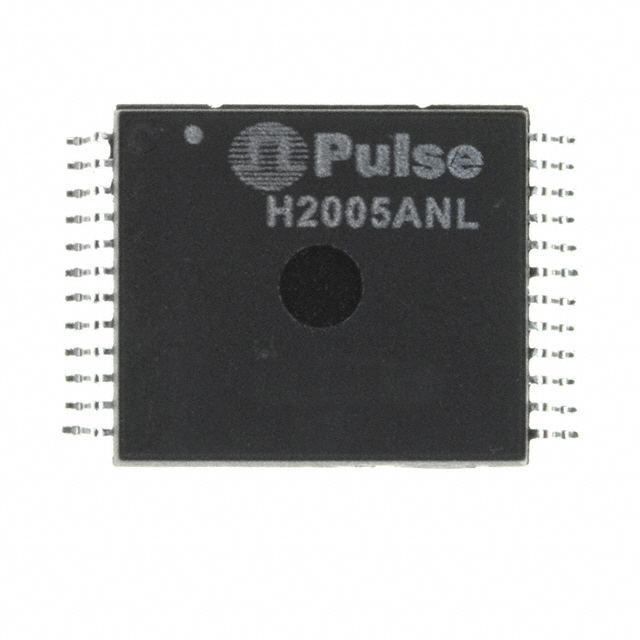

H2005ANL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H2005ANL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H2005ANL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H2005ANL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | MODULE XFRMR VOIP DL LAN 24-SOIC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.654 | $2.017 | $1.964 | $1.805 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.699 | $1.645 | $1.592 | $1.539 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H2005ANL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | MODULE XFRMR VOIP DL LAN 24-SOIC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21467 pcs | Data sheet | PoE Magnetics,10/100BASE-TX VoIP Module |
| Category | Transformers | Weight | 0.1 oz (2.85g) |
| Turns Ratio - Primary:Secondary | 1CT:1CT | Transformer Type | LAN |
| Size / Dimension | 0.510" L x 0.600" W (12.95mm x 15.24mm) | Series | - |
| Packaging | Tube | Other Names | 553-1330 |
| Operating Temperature | 0°C ~ 70°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | - |
| Height - Seated (Max) | 0.290" (7.36mm) | Energy Time (E.T.) | - |
