H1197NLT

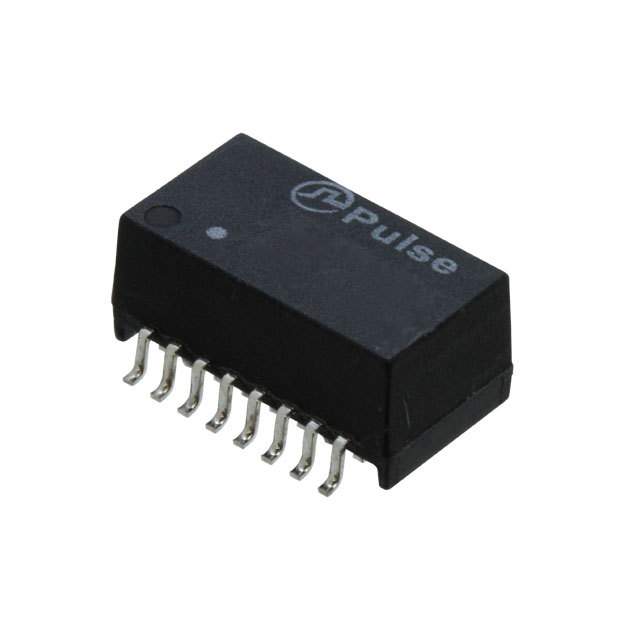

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H1197NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H1197NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H1197NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | XFRMR MAGNT MOD 1PORT POE 10/100 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 600 pcs | 1200 pcs | |||
|---|---|---|---|---|---|
| $0.987 | $0.956 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | H1197NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | XFRMR MAGNT MOD 1PORT POE 10/100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33390 pcs | Data sheet | H1197NL Drawing SpecPoE Magnetics,10/100BASE-TX VoIP Module |
| Category | Transformers | Weight | 0.02 oz (0.57g) |
| Turns Ratio - Primary:Secondary | 1CT:1CT | Transformer Type | Isolation and Data Interface (Encapsulated) |
| Size / Dimension | 0.500" L x 0.265" W (12.70mm x 6.73mm) | Series | - |
| Packaging | Tape & Reel (TR) | Other Names | 553-1922-2 H1197NLT-ND |
| Operating Temperature | 0°C ~ 70°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | - |
| Height - Seated (Max) | 0.245" (6.22mm) | Energy Time (E.T.) | - |
