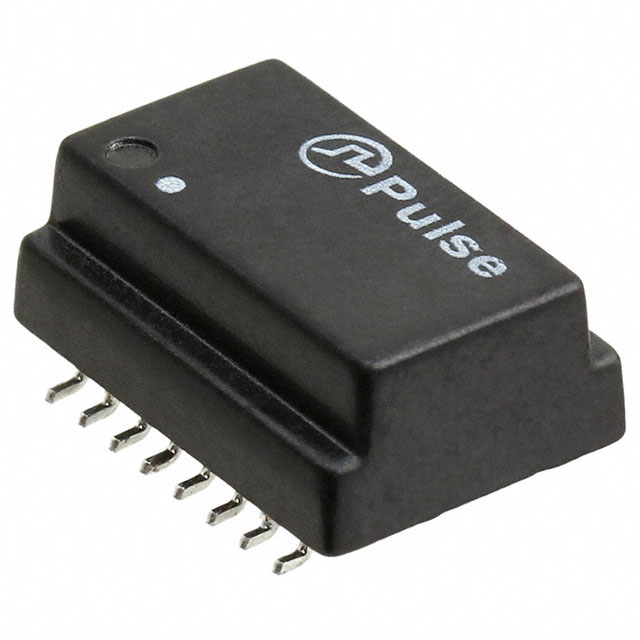

H1197FNL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H1197FNL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H1197FNL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H1197FNL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | PULSE XFMR 1CT:1CT TX 1CT:1CT RX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 80 pcs | |
|---|---|---|---|---|---|
| $1.764 | $1.43 | $1.156 | $1.083 | ||
| 120 pcs | 280 pcs | 520 pcs | 1000 pcs | ||
| $1.034 | $1.004 | $0.973 | $0.943 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H1197FNL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | PULSE XFMR 1CT:1CT TX 1CT:1CT RX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40139 pcs | Data sheet | H1197FNL |
| Category | Transformers | Weight | - |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver | Transformer Type | LAN 10/100 Base-T |
| Size / Dimension | 0.500" L x 0.358" W (12.70mm x 9.09mm) | Series | - |
| Packaging | Tube | Other Names | 553-2197 553-2197-5 553-2197-ND |
| Operating Temperature | 0°C ~ 70°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 1.2mH |
| Height - Seated (Max) | 0.236" (5.99mm) | Energy Time (E.T.) | - |
