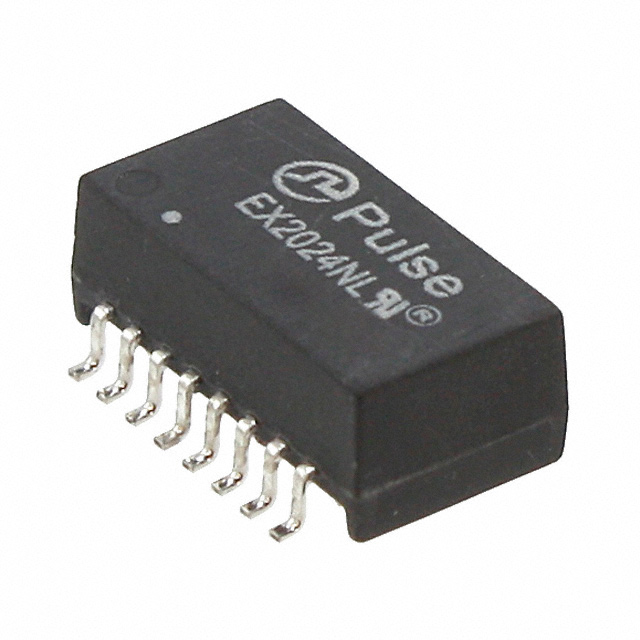

EX2024NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EX2024NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EX2024NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EX2024NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | XFRMR LAN ISOL 10BASET 1:2.5 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 80 pcs | |
|---|---|---|---|---|---|
| $2.032 | $1.646 | $1.331 | $1.247 | ||
| 120 pcs | 280 pcs | 520 pcs | 1000 pcs | ||
| $1.191 | $1.156 | $1.121 | $1.086 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EX2024NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | XFRMR LAN ISOL 10BASET 1:2.5 SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30647 pcs | Data sheet | Isolation Xfrmr for 10Base-T |
| Category | Transformers | Weight | 0.03 oz (0.85g) |
| Turns Ratio - Primary:Secondary | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Transformer Type | Isolation and Data Interface (Encapsulated) |
| Size / Dimension | 0.500" L x 0.285" W (12.70mm x 7.24mm) | Series | - |
| Packaging | Tube | Other Names | 553-1830-5 EX2024NL-ND |
| Operating Temperature | 0°C ~ 70°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 350µH |
| Height - Seated (Max) | 0.210" (5.33mm) | Energy Time (E.T.) | - |
