EX2024FNL

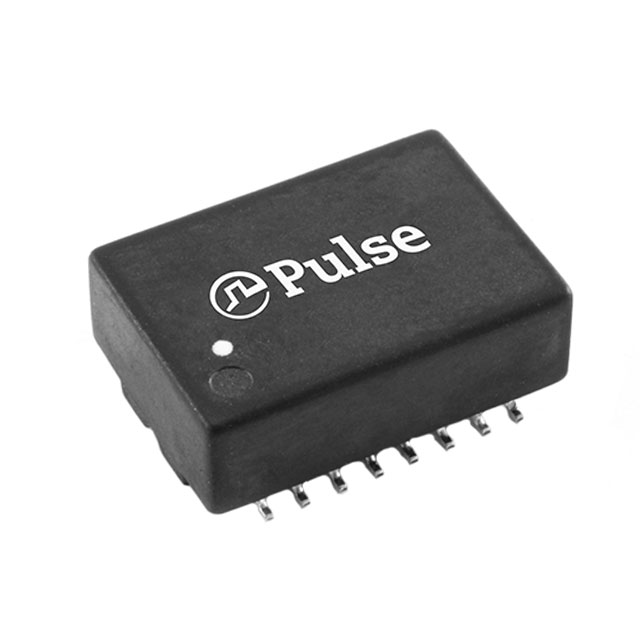

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EX2024FNL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EX2024FNL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EX2024FNL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | PULSE XFMR 1CT:2.5CT 1CT:1CT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 80 pcs | |
|---|---|---|---|---|---|
| $1.965 | $1.592 | $1.287 | $1.206 | ||
| 120 pcs | 280 pcs | 520 pcs | 1000 pcs | ||
| $1.152 | $1.118 | $1.084 | $1.05 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EX2024FNL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | PULSE XFMR 1CT:2.5CT 1CT:1CT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29651 pcs | Data sheet | EX2024FNL Drawing |
| Category | Transformers | Weight | - |
| Turns Ratio - Primary:Secondary | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Transformer Type | LAN 10G Base-T |
| Size / Dimension | 0.498" L x 0.350" W (12.65mm x 8.89mm) | Series | - |
| Packaging | Tube | Other Names | 553-2215 553-2215-5 553-2215-ND |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 35µH, 200µH |
| Height - Seated (Max) | 0.200" (5.08mm) | Energy Time (E.T.) | - |
