VLA541-01R

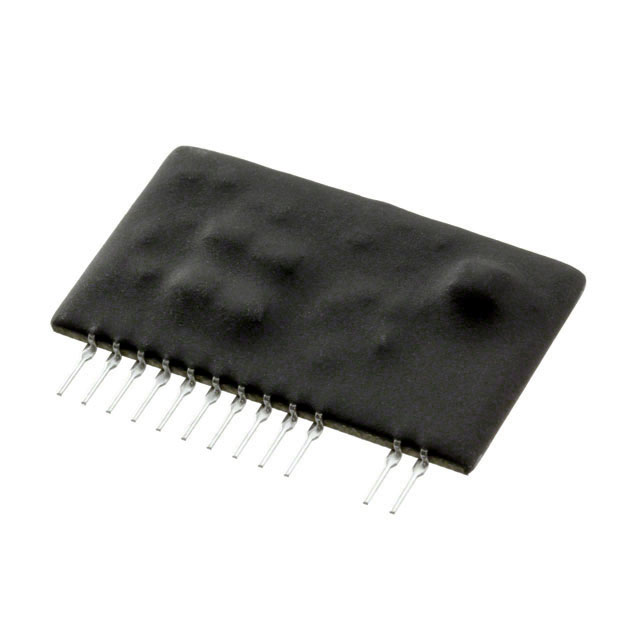

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VLA541-01R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy VLA541-01R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | VLA541-01R |
|---|---|
| Manufacturer | Powerex, Inc. |
| Description | IC IGBT GATE DVR ISO 3A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $4.449 | $4.002 | $3.647 | $3.291 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $3.024 | $2.757 | $2.401 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | VLA541-01R | Manufacturer | Powerex, Inc. |
|---|---|---|---|
| Description | IC IGBT GATE DVR ISO 3A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15620 pcs | Data sheet | VLA541‐01R |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 14 V ~ 17 V |
| Supplier Device Package | Module | Series | - |
| Rise / Fall Time (Typ) | 300ns, 300ns | Packaging | Bulk |
| Package / Case | 14-SIP Module, 12 Leads | Other Names | 835-1190 VLA541-01R-ND VLA541?01R |
| Operating Temperature | -20°C ~ 70°C (TA) | Number of Drivers | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 20 Weeks | Logic Voltage - VIL, VIH | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | Non-Inverting |
| Gate Type | IGBT | Driven Configuration | Low-Side |
| Detailed Description | Low-Side Gate Driver IC Non-Inverting Module | Current - Peak Output (Source, Sink) | 3A, 3A |
| Channel Type | Single |
