VLA502-01

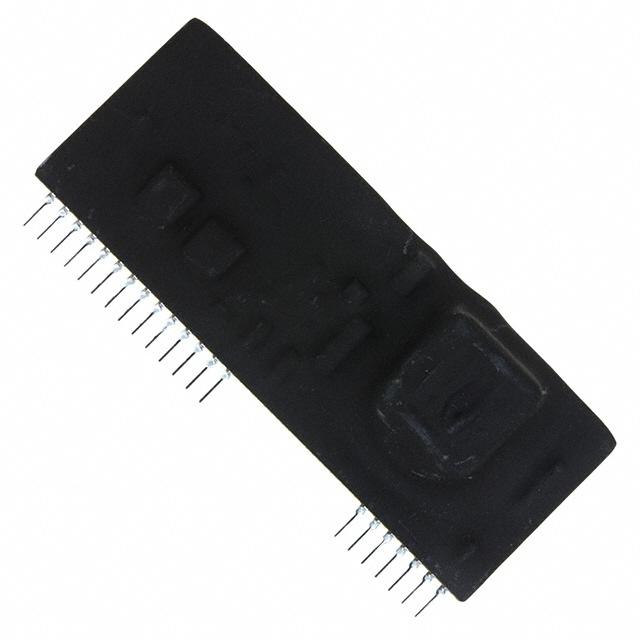

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VLA502-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy VLA502-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | VLA502-01 |
|---|---|
| Manufacturer | Powerex, Inc. |
| Description | IC IGBT GATE DVR/DC-DC CONV 12A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $17.416 | $16.286 | $15.063 | $14.121 | $13.18 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | VLA502-01 | Manufacturer | Powerex, Inc. |
|---|---|---|---|
| Description | IC IGBT GATE DVR/DC-DC CONV 12A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2947 pcs | Data sheet | VLA502-01 |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 14.2 V ~ 15.8 V |
| Supplier Device Package | Module | Series | - |
| Rise / Fall Time (Typ) | 300ns, 300ns | Packaging | Bulk |
| Package / Case | 21-SIP Module | Other Names | 835-1064 VLA502-01R VLA50201 VLA502R |
| Operating Temperature | -20°C ~ 60°C (TA) | Number of Drivers | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Logic Voltage - VIL, VIH | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Non-Inverting | Gate Type | IGBT |
| Driven Configuration | Low-Side | Detailed Description | Low-Side Gate Driver IC Non-Inverting Module |
| Current - Peak Output (Source, Sink) | 12A, 12A | Channel Type | Single |
