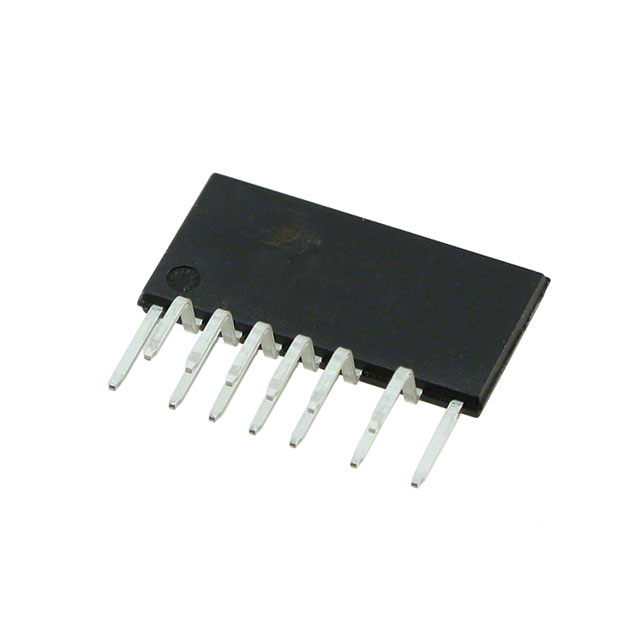

LCS708HG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LCS708HG with confidence from Components-World.HK, 1 Year Warranty
Dowload LCS708HG Details in PDFSee Product Specifications for product details.
Buy LCS708HG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LCS708HG |
|---|---|
| Manufacturer | Power Integrations |
| Description | IC LLC CTRL MFET 440W ESIP16C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 120 pcs | |
|---|---|---|---|---|---|
| $4.366 | $3.929 | $3.58 | $3.231 | ||
| 270 pcs | 510 pcs | 1020 pcs | |||
| $2.969 | $2.707 | $2.358 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | LCS708HG | Manufacturer | Power Integrations |
|---|---|---|---|
| Description | IC LLC CTRL MFET 440W ESIP16C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15149 pcs | Data sheet | LCS700-708 |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 11.4 V ~ 15 V |
| Voltage - Load | 11.4 V ~ 15 V | Technology | Power MOSFET |
| Supplier Device Package | 16-ESIP | Series | HiperLCS™ |
| Rds On (Typ) | 260 mOhm | Packaging | Tube |
| Package / Case | 16-SSIP, 13 Leads, Exposed Pad, Formed Leads | Output Configuration | Half Bridge |
| Other Names | 596-1430-5 | Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Load Type | Inductive |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | On/Off |
| Features | Auto Restart, Slew Rate Controlled | Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Detailed Description | Half Bridge Driver General Purpose Power MOSFET 16-ESIP | Current - Peak Output | 30.9A |
| Current - Output / Channel | - | Applications | General Purpose |
