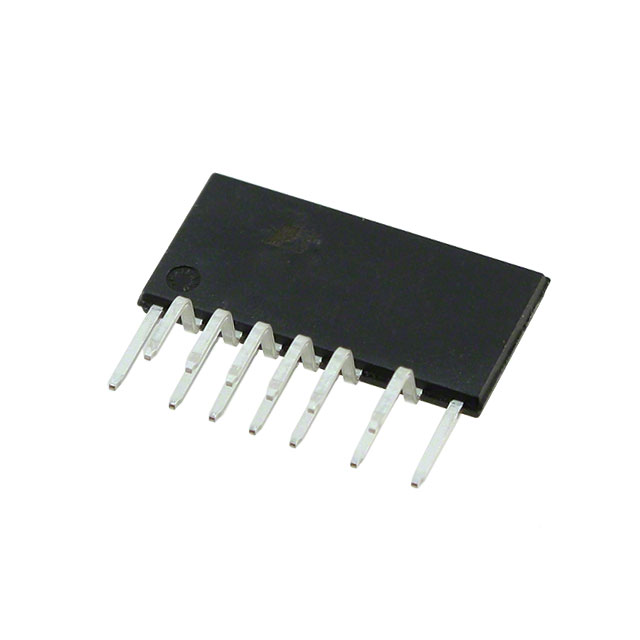

LCS700HG

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LCS700HG with confidence from Components-World.HK, 1 Year Warranty

Dowload LCS700HG Details in PDF

Request a Quote

Part Number	LCS700HG
Manufacturer	Power Integrations
Description	IC LLC CTRL MFET 110W ESIP16C
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	270 pcs	510 pcs	1020 pcs	2520 pcs
~~In Stock~~ 31401 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	30 pcs	120 pcs
	$2.143	$1.915	$1.723	$1.57
	$1.417	$1.271	$1.072	$1.019

Product parameter
Data sheet

Product parameter

Part Number	LCS700HG	Manufacturer	Power Integrations
Description	IC LLC CTRL MFET 110W ESIP16C	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31401 pcs	Data sheet	LCS700-708
Category	Integrated Circuits (ICs)	Voltage - Supply	11.4 V ~ 15 V
Voltage - Load	11.4 V ~ 15 V	Technology	Power MOSFET
Supplier Device Package	16-ESIP	Series	HiperLCS™
Rds On (Typ)	1.53 Ohm	Packaging	Tube
Package / Case	16-SSIP, 13 Leads, Exposed Pad, Formed Leads	Output Configuration	Half Bridge
Other Names	596-1435-5	Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Load Type	Inductive
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	On/Off
Features	Auto Restart, Slew Rate Controlled	Fault Protection	Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Detailed Description	Half Bridge Driver General Purpose Power MOSFET 16-ESIP	Current - Peak Output	5.2A
Current - Output / Channel	-	Applications	General Purpose
