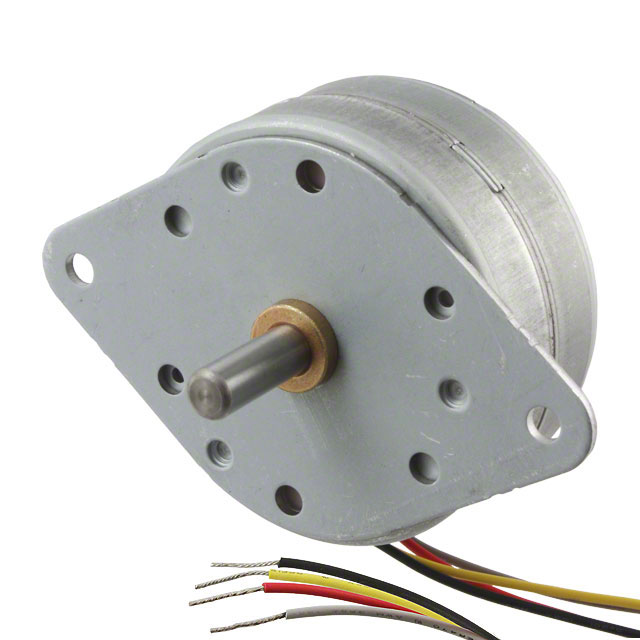

55M048D1B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 55M048D1B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 55M048D1B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 55M048D1B |
|---|---|
| Manufacturer | Portescap |
| Description | STEPPER MOTOR PM BIPOLAR 5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 55M048D1B | Manufacturer | Portescap |
|---|---|---|---|
| Description | STEPPER MOTOR PM BIPOLAR 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4489 pcs | Data sheet | 55M048D SeriesCanStack Motor Part Numbering55M Series Wiring DiagramCan Stack Stepper Speed vs Torque Curves |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.525 lb (238.14g) |
| Voltage - Rated | 5VDC | Type | Permanent Magnet |
| Torque - Holding (oz-in / mNm) | 27.6 / 195 | Termination Style | Wire Leads |
| Steps per Revolution | 48 | Step Angle | 7.5° |
| Size / Dimension | Round - 2.170" Dia (55.12mm) | Series | 55M |
| Rotor Inertia | 48.3gcm² | Other Names | 403-1016 |
| Operating Temperature | -20°C ~ 70°C | Mounting Hole Spacing | 2.630" (66.68mm) |
| Length - Shaft and Bearing | 0.750" (19.05mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Round Shaft | Diameter - Shaft | 0.250" (6.35mm) |
| Detailed Description | Bipolar Stepper Motor 960mA 5VDC | Current Rating | 960mA |
| Coil Type | Bipolar | Coil Resistance | 5.2 Ohms |
| Approvals | - | Accuracy | ±15% |
