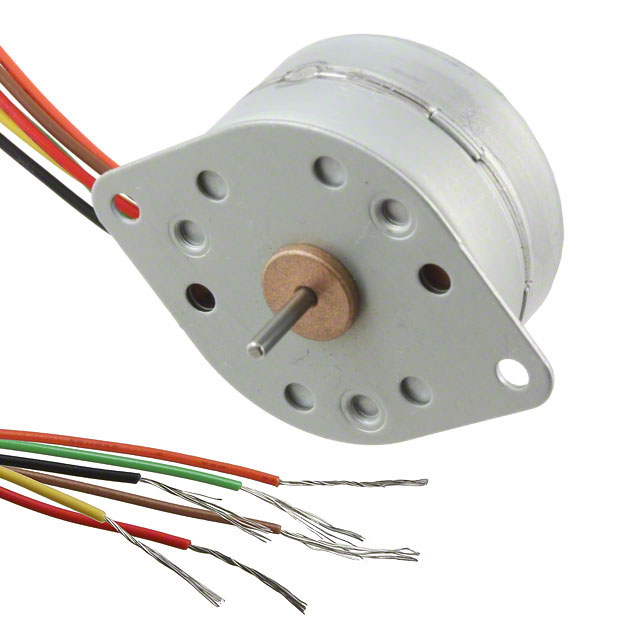

35L048B1U
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 35L048B1U with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 35L048B1U with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 35L048B1U |
|---|---|
| Manufacturer | Portescap |
| Description | STEPPER MOTOR PM UNIPOLAR 5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $8.662 | $8.399 | $7.874 | $7.611 | ||
| 50 pcs | 100 pcs | 250 pcs | 500 pcs | ||
| $7.349 | $7.086 | $6.981 | $6.824 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 35L048B1U | Manufacturer | Portescap |
|---|---|---|---|
| Description | STEPPER MOTOR PM UNIPOLAR 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4767 pcs | Data sheet | 35L048B Spec.CanStack Motor Part Numbering35L Series Wiring DiagramCan Stack Stepper Speed vs Torque Curves |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.194 lb (88g) |
| Voltage - Rated | 5VDC | Type | Permanent Magnet |
| Torque - Holding (oz-in / mNm) | 3.5 / 25 | Termination Style | Wire Leads |
| Steps per Revolution | 48 | Step Angle | 7.5° |
| Size / Dimension | Round - 1.420" Dia (35.94mm) | Series | 35L |
| Rotor Inertia | 4gcm² | Other Names | 35L048B1U-N 403-1022 |
| Operating Temperature | -20°C ~ 70°C | Mounting Hole Spacing | 1.650" (42.00mm) |
| Manufacturer Standard Lead Time | 12 Weeks | Length - Shaft and Bearing | 0.445" (11.30mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Round Shaft |
| Diameter - Shaft | 0.079" (2.00mm) | Detailed Description | Unipolar Stepper Motor 450mA 5VDC |
| Current Rating | 450mA | Coil Type | Unipolar |
| Coil Resistance | 11 Ohms | Approvals | - |
| Accuracy | ±15% |
