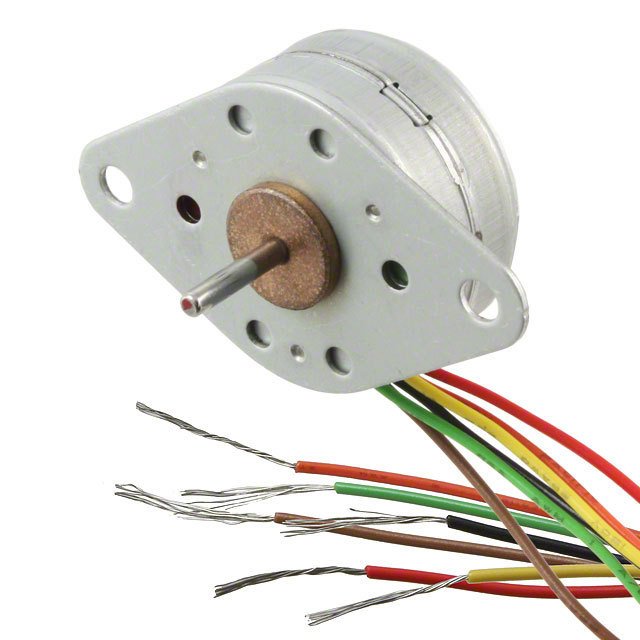

26M024B2U
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 26M024B2U with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 26M024B2U with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 26M024B2U |
|---|---|
| Manufacturer | Portescap |
| Description | STEPPER MOTOR PM UNIPOLAR 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $8.662 | $8.398 | $7.873 | $7.611 | ||
| 50 pcs | 100 pcs | 250 pcs | 500 pcs | ||
| $7.348 | $7.086 | $6.981 | $6.823 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 26M024B2U | Manufacturer | Portescap |
|---|---|---|---|
| Description | STEPPER MOTOR PM UNIPOLAR 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4833 pcs | Data sheet | 26M024B Spec.CanStack Motor Part Numbering26M Series Wiring Diagram |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.075 lb (34.02g) |
| Voltage - Rated | 12VDC | Type | Permanent Magnet |
| Torque - Holding (oz-in / mNm) | 0.9 / 6.3 | Termination Style | Wire Leads |
| Steps per Revolution | 24 | Step Angle | 15° |
| Size / Dimension | Round - 1.030" Dia (26.16mm) | Series | 26M |
| Rotor Inertia | 1.1gcm² | Other Names | 403-1003 |
| Operating Temperature | -20°C ~ 70°C | Mounting Hole Spacing | 1.370" (34.90mm) |
| Manufacturer Standard Lead Time | 12 Weeks | Length - Shaft and Bearing | 0.445" (11.30mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Round Shaft |
| Diameter - Shaft | 0.079" (2.00mm) | Detailed Description | Unipolar Stepper Motor 110mA 12VDC |
| Current Rating | 110mA | Coil Type | Unipolar |
| Coil Resistance | 110 Ohms | Approvals | - |
| Accuracy | ±15% |
