Home > Products > Motors, Solenoids, Driver Boards/Modules > Stepper Motors > PD86-3-1180-TMCL

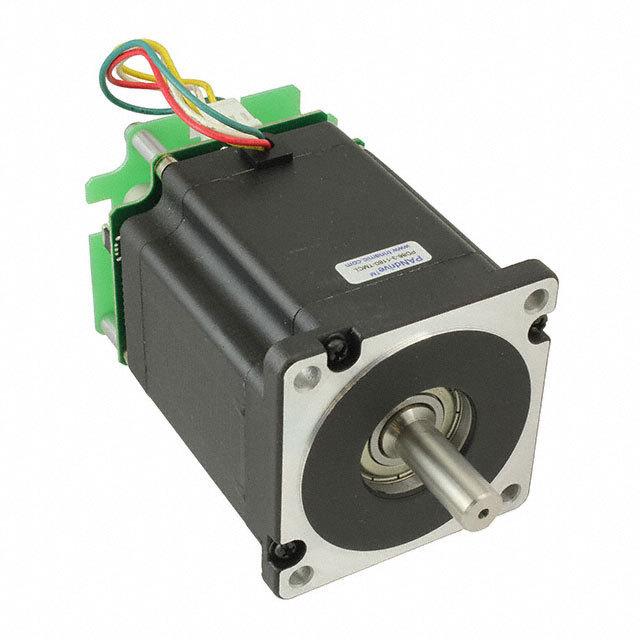

PD86-3-1180-TMCL

PD86-3-1180-TMCL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PD86-3-1180-TMCL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number PD86-3-1180-TMCL
Manufacturer TRINAMIC Motion Control GmbH
Description STEPPER MOTOR HYBRID BIPOLAR 48V
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 157 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs
$229.664$223.006

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$229.664

Product parameter

Part Number PD86-3-1180-TMCL Manufacturer TRINAMIC Motion Control GmbH
Description STEPPER MOTOR HYBRID BIPOLAR 48V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 157 pcs Data sheet PD86,TMCM-1180 Firmware ManualPD86-1180 Short SpecTMCM-1180,PD86-1180 Hardware Manual
Category Motors, Solenoids, Driver Boards/Modules Weight 6.2 lbs (2.8kg)
Voltage - Rated 48VDC Type Hybrid
Torque - Holding (oz-in / mNm) 991.28 / 7000 Termination Style Wire Leads with Connector
Steps per Revolution 200 Step Angle 1.8°
Size / Dimension Square - 3.382" x 3.382" (85.90mm x 85.90mm) Series PANdrive™
Rotor Inertia - Other Names 1460-1122
30-0164
30-0289
Operating Temperature - NEMA Frame Size 34
Mounting Hole Spacing 2.740" (69.60mm) Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 8 Weeks Length - Shaft and Bearing 1.310" (33.27mm)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Features Integrated Controller, Flatted Shaft
Diameter - Shaft 0.500" (12.70mm) Detailed Description Bipolar Stepper Motor Frame Size 34 200 Step 5.5A 48VDC
Current Rating 5.5A Coil Type Bipolar
Approvals - Accuracy -
