17H118D10B

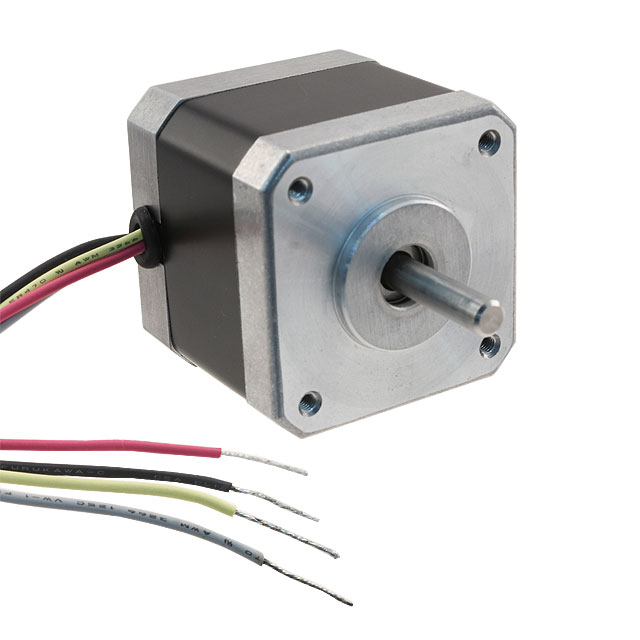

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 17H118D10B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 17H118D10B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 17H118D10B |
|---|---|
| Manufacturer | Portescap |
| Description | STEP MOTOR HYBRID BIPOLAR 4.1V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 17H118D10B | Manufacturer | Portescap |
|---|---|---|---|
| Description | STEP MOTOR HYBRID BIPOLAR 4.1V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5440 pcs | Data sheet | 17Hx18DH3 Hybrid Motor Part NumberingStepper Hybrid TechnologyH3 Wiring Diagram |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.57 lb (258.55g) |
| Voltage - Rated | 4.1VDC | Type | Hybrid |
| Torque - Holding (oz-in / mNm) | 51 / 360 | Termination Style | Wire Leads |
| Steps per Revolution | 200 | Step Angle | 1.8° |
| Size / Dimension | Square - 1.680" x 1.680" (42.67mm x 42.67mm) | Series | H3 |
| Rotor Inertia | 50gcm² | Other Names | 403-1037 |
| Operating Temperature | -20°C ~ 40°C | NEMA Frame Size | 17 |
| Mounting Hole Spacing | 1.220" (30.99mm) | Length - Shaft and Bearing | 0.790" (20.07mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Round Shaft |
| Diameter - Shaft | 0.197" (5.00mm) | Detailed Description | Bipolar Stepper Motor 200 Step 1A 4.1VDC |
| Current Rating | 1A | Coil Type | Bipolar |
| Coil Resistance | 4.12 Ohms | Approvals | CE, UL |
| Accuracy | ±5% |
