Home > Products > Connectors, Interconnects > Solid State Lighting Connectors > 1830142

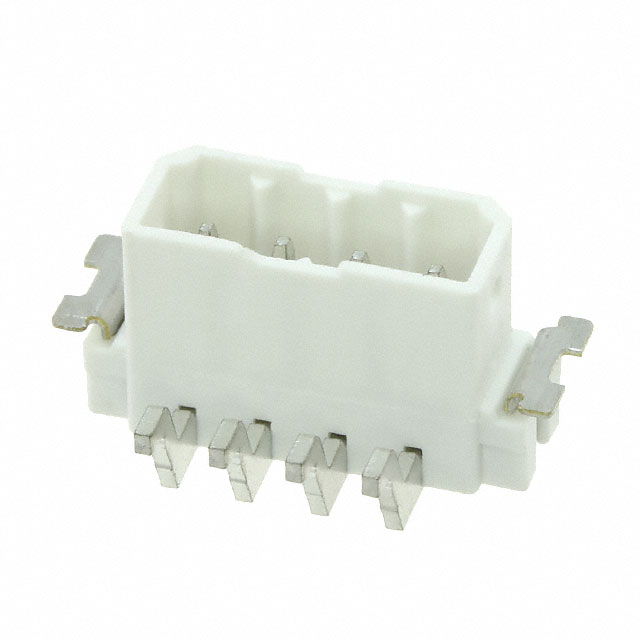

1830142

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1830142 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	1830142
Manufacturer	Phoenix Contact
Description	HEADER 4POS SMT WHITE
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 62684 pcs
Reference Price (In US Dollars)	330 pcs	660 pcs	990 pcs
Reference Price (In US Dollars)	$0.372	$0.342	$0.316

Product parameter
Data sheet

Product parameter

Part Number	1830142	Manufacturer	Phoenix Contact
Description	HEADER 4POS SMT WHITE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	62684 pcs	Data sheet	1830142
Category	Connectors, Interconnects	Wire Gauge	-
Voltage Rating	150V	Termination	Solder
Style	Board to Cable/Wire	Series	COMBICON PTSM
Pitch	0.098" (2.50mm)	Packaging	Tape & Reel (TR)
Other Names	277-10153-2 PTSM0,5/4-HTB-2,5-SMDWHR44 PTSM054HTB25SMDWHR45	Operating Temperature	-
Number of Positions	4	Mounting Type	Surface Mount, Bottom Entry, Through Board
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mating Cycles	-
Manufacturer Standard Lead Time	2 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Housing Material	Polyamide (PA), Nylon
Housing Color	White	Features	Solder Retention
Fastening Type	Detent Lock	Detailed Description	SSL Connector 4 Position Header, Male Pins Board to Cable/Wire 0.098" (2.50mm) Solder
Current Rating	5A	Contact Material	-
Contact Finish	Tin	Connector Type	Header, Male Pins
