1524776

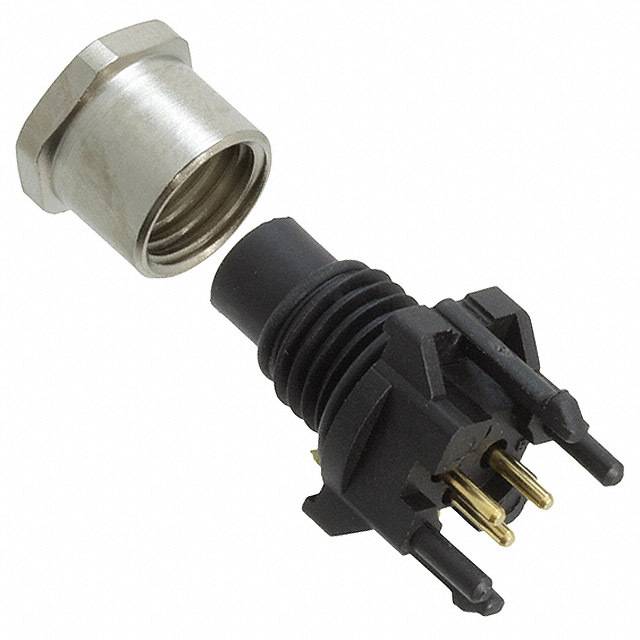

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1524776 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1524776 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1524776 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | CONN RCPT FMALE 3POS GOLD SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $4.949 | $4.815 | $4.50 | $4.14 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $3.825 | $3.645 | $3.42 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1524776 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN RCPT FMALE 3POS GOLD SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8915 pcs | Data sheet | 1524776 |
| Category | Connectors, Interconnects | Voltage Rating | 50VAC, 60VDC |
| Termination | Solder | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | M8-3 |
| Shell Material | Brass | Shell Finish | Nickel |
| Series | DSIV | Packaging | Bulk |
| Other Names | 1524776-ND 277-7282 SACC-DSIV-M 8FS-3CON-L180-06 SACC-DSIV-M8FS-3CON-L180-06 |
Orientation | A |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 3 |
| Mounting Type | Panel Mount, Through Hole | Mounting Feature | Bulkhead |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 HB |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Board Guide, Board Lock | Fastening Type | Threaded |
| Detailed Description | 3 Position Circular Connector Receptacle, Female Sockets Solder Gold | Current Rating | 4A |
| Contact Material | Copper Tin | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
| Color | Black, Silver | Cable Opening | - |
| Backshell Material, Plating | - | Applications | - |
