1506778

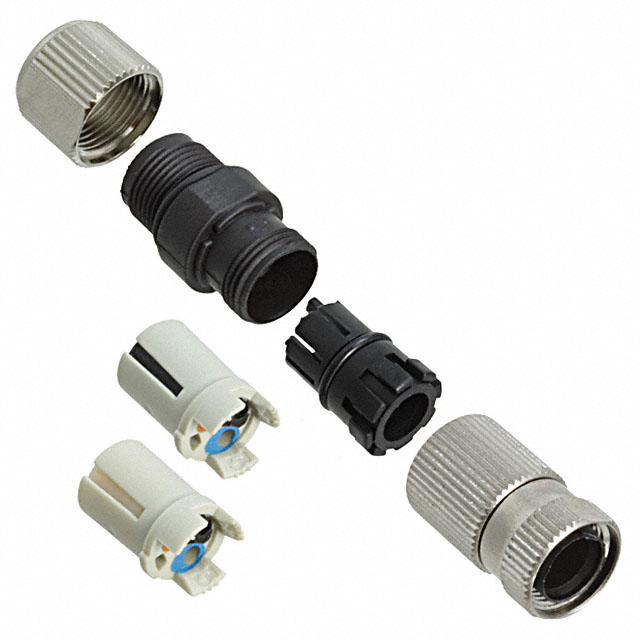

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1506778 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1506778 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1506778 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | CONN RCPT FMALE 3POS PIERCE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $7.207 | $6.631 | $6.126 | $5.838 | $5.478 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1506778 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN RCPT FMALE 3POS PIERCE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5996 pcs | Data sheet | 1506778 |
| Category | Connectors, Interconnects | Voltage Rating | 48VAC, 60VDC |
| Termination | Axial Pierce | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | M8-3 |
| Shell Material | Brass | Shell Finish | Nickel |
| Series | SACC | Packaging | Bulk |
| Other Names | 1506778-ND 277-4222 SACC-M 8FS-3PCON SACC-M8FS-3PCON |
Orientation | A |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 3 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Features | Backshell, Coupling Nut | Fastening Type | Threaded |
| Detailed Description | 3 Position Circular Connector Receptacle, Female Sockets Axial Pierce Gold | Current Rating | 4A |
| Contact Material | Copper Zinc | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
| Color | Black, Silver | Cable Opening | 0.118" ~ 0.197" (3.00mm ~ 5.00mm) |
| Backshell Material, Plating | Polyamide (PA66), Nylon 6/6 | Applications | - |
