1506765

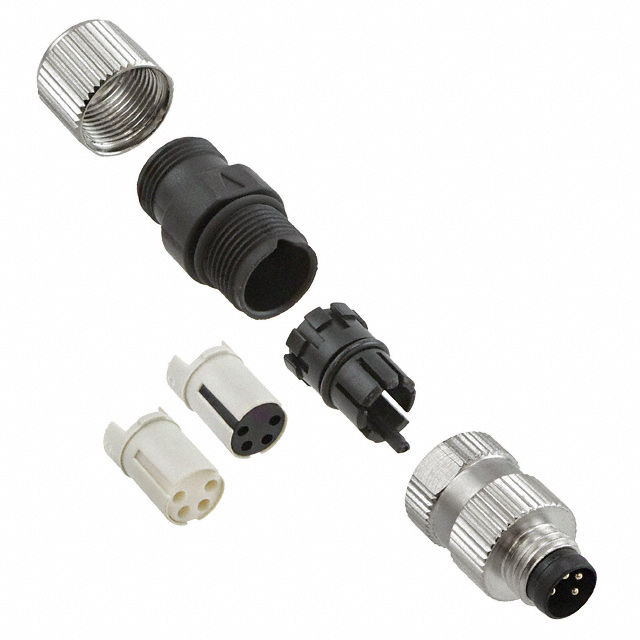

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1506765 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1506765 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1506765 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | CONN PLUG MALE 4POS AXIAL PIERCE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $8.554 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1506765 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN PLUG MALE 4POS AXIAL PIERCE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3686 pcs | Data sheet | 1506765 Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 30VAC/DC |
| Termination | Axial Pierce | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | M8-4 |
| Shell Material | Brass | Shell Finish | Nickel |
| Series | SACC | Packaging | Bulk |
| Other Names | 1506765-ND 277-4309 SACC-M 8MS-4PCON SACC-M8MS-4PCON |
Orientation | A |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 4 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Features | Backshell | Fastening Type | Threaded |
| Detailed Description | 4 Position Circular Connector Plug, Male Pins Axial Pierce Gold | Current Rating | 4A |
| Contact Material | Copper Zinc | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Plug, Male Pins |
| Color | Black, Silver | Cable Opening | 0.118" ~ 0.197" (3.00mm ~ 5.00mm) |
| Backshell Material, Plating | Polyamide (PA66), Nylon 6/6 | Applications | - |
