PE42420D-Z

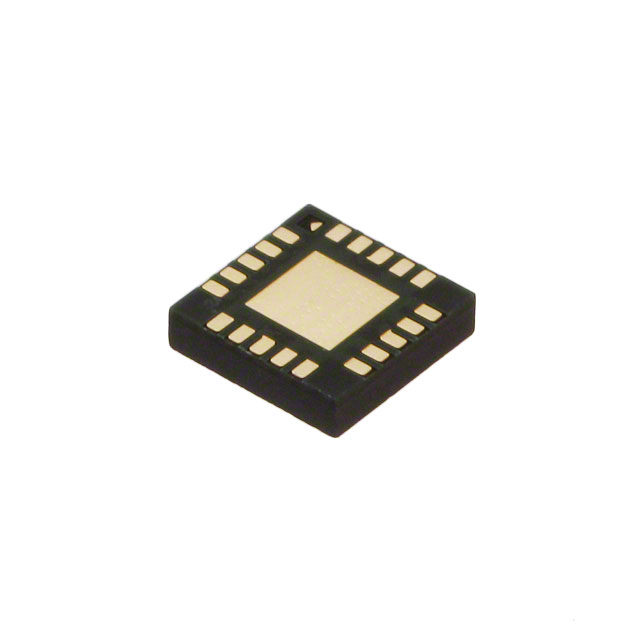

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE42420D-Z with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE42420D-Z with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE42420D-Z |
|---|---|
| Manufacturer | Peregrine Semiconductor |
| Description | IC RF SWITCH SPDT 20LGA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.183 | $1.055 | $0.949 | $0.865 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.78 | $0.70 | $0.591 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE42420D-Z | Manufacturer | Peregrine Semiconductor |
|---|---|---|---|
| Description | IC RF SWITCH SPDT 20LGA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64095 pcs | Data sheet | PE42420 Datasheet |
| Category | RF/IF and RFID | Voltage - Supply | 3V |
| Topology | Absorptive | Test Frequency | 6GHz |
| Supplier Device Package | 20-LGA (4x4) | Series | UltraCMOS® |
| RF Type | - | Packaging | Cut Tape (CT) |
| Package / Case | 20-TFLGA Exposed Pad | P1dB | - |
| Other Names | 1046-1158-1 | Operating Temperature | -40°C ~ 105°C |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Isolation | 50dB |
| Insertion Loss | 1.6dB | Impedance | 50 Ohm |
| IIP3 | 65dBm | Frequency Range | 100MHz ~ 6GHz |
| Features | - | Detailed Description | RF Switch IC SPDT 6GHz 50 Ohm 20-LGA (4x4) |
| Circuit | SPDT |
