PE42020A-X

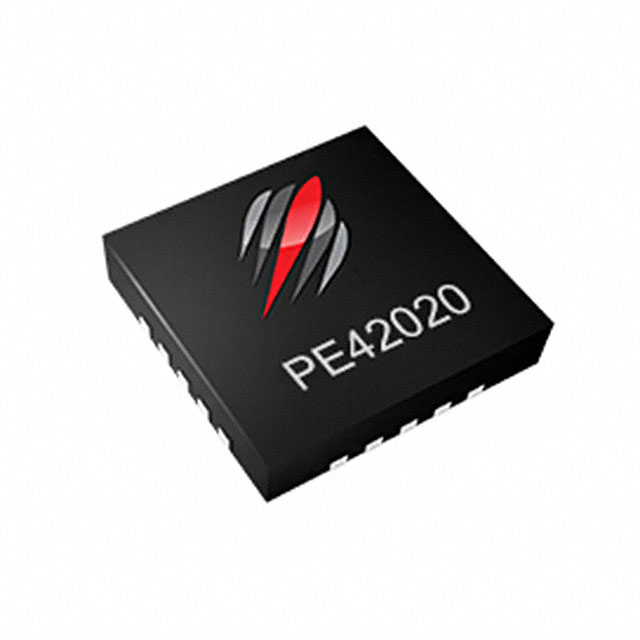

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE42020A-X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE42020A-X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE42020A-X |
|---|---|
| Manufacturer | Peregrine Semiconductor |
| Description | RF SWITCH 20-QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 250 pcs | |||
|---|---|---|---|---|---|
| $10.566 | $7.386 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE42020A-X | Manufacturer | Peregrine Semiconductor |
|---|---|---|---|
| Description | RF SWITCH 20-QFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4605 pcs | Data sheet | PE42020 Specification |
| Category | RF/IF and RFID | Voltage - Supply | 10 V ~ 17 V |
| Topology | Absorptive | Test Frequency | 6GHz |
| Supplier Device Package | 20-QFN (4x4) | Series | UltraCMOS® |
| RF Type | - | Packaging | Original-Reel® |
| Package / Case | 20-VFQFN Exposed Pad | P1dB | 38dBm |
| Other Names | 1046-1126-6 | Operating Temperature | -40°C ~ 85°C |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Isolation | 42dB |
| Insertion Loss | 1.1dB | Impedance | 50 Ohm |
| IIP3 | 62dBm | Frequency Range | 0Hz ~ 8GHz |
| Features | - | Detailed Description | RF Switch IC SPDT 8GHz 50 Ohm 20-QFN (4x4) |
| Circuit | SPDT |
