PV22-4R-MY

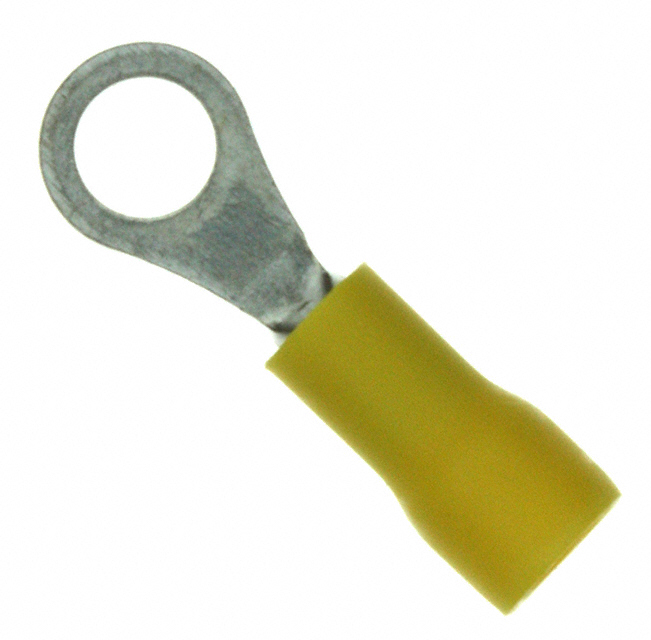

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PV22-4R-MY with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PV22-4R-MY with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PV22-4R-MY |
|---|---|
| Manufacturer | Panduit |
| Description | CONN RING CIRC 22-26AWG #4 CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.12 | $0.117 | $0.114 | $0.112 | ||
| 100 pcs | 500 pcs | 1000 pcs | |||
| $0.109 | $0.107 | $0.101 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PV22-4R-MY | Manufacturer | Panduit |
|---|---|---|---|
| Description | CONN RING CIRC 22-26AWG #4 CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 234995 pcs | Data sheet | PV22-xR(CY,MY) Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 22-26 AWG |
| Width - Outer Edges | 0.210" (5.33mm) | Thickness | 0.020" (0.51mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 4 Stud | Series | Pan-Term® |
| Packaging | Bulk | Other Names | 298-10086 PV22-4R-M PV22-4R-M-ND PV224RMY |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Insulation | Vinyl | Manufacturer Standard Lead Time | 4 Weeks |
| Length - Overall | 0.680" (17.27mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.110" (2.79mm) | Insulation | Insulated |
| Features | Brazed Seam | Detailed Description | Ring Terminal Connector 4 Stud Circular 22-26 AWG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Yellow |
